QUESTION 2 A beam supports a variably distributed load as shown in Figure 2. Given a pin support at A, and a roller supp

Post by answerhappygod »

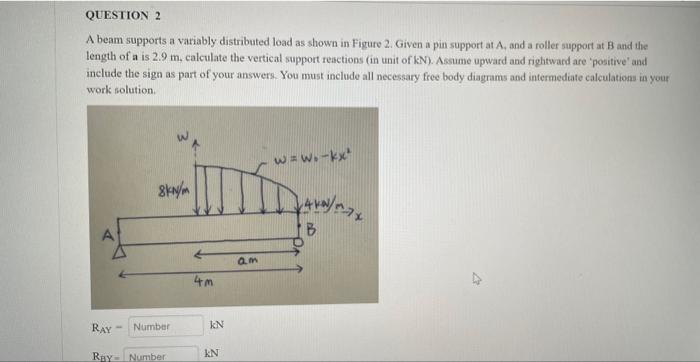

Question 2 A Beam Supports A Variably Distributed Load As Shown In Figure 2 Given A Pin Support At A And A Roller Supp 1
Question 2 A Beam Supports A Variably Distributed Load As Shown In Figure 2 Given A Pin Support At A And A Roller Supp 1 (25.76 KiB) Viewed 13 times
QUESTION 2 A beam supports a variably distributed load as shown in Figure 2. Given a pin support at A, and a roller support at B and the length of a is 2.9 m. calculate the vertical support reactions (in unit of kN). Assume upward and rightward are positive and include the sign as part of your answers. You must include all necessary free body diagrams and intermediate calculations in your work solution w=w.-kx Sky 14 kW/nx В am 4m RAY Number KN REY- Number KN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
