Problem 4 (CO-3) (8 points): In the following system very long steel profiles were painted and coated, design a relay co

[answerhappygod]

Problem 4 Co 3 8 Points In The Following System Very Long Steel Profiles Were Painted And Coated Design A Relay Co 1 (38.96 KiB) Viewed 14 times

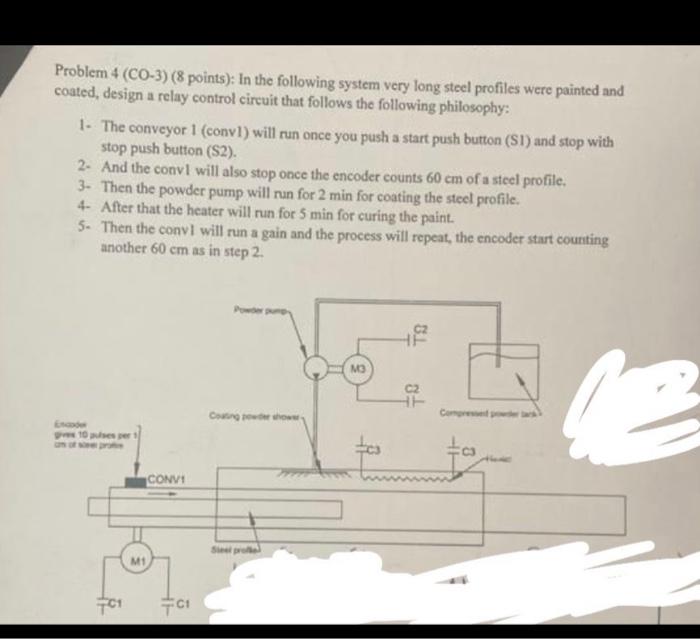

Problem 4 (CO-3) (8 points): In the following system very long steel profiles were painted and coated, design a relay control circuit that follows the following philosophy: 1- The conveyor 1 (conv1) will run once you push a start push button (SI) and stop with stop push button (S2). 2- And the convl will also stop once the encoder counts 60 cm of a steel profile. 3- Then the powder pump will run for 2 min for coating the steel profile. 4- After that the heater will run for 5 min for curing the paint. 5- Then the convl will run a gain and the process will repeat, the encoder start counting another 60 cm as in step 2. M3 49 Compressed p Coating powder shower, Encoder es 10 puses per Sieel profe M1 CONVI +91
