Rotameter Manometer tappings (ferrules) Venturi meter Wide angle diffuser Orifice meter H D. ED IF GN AM B Flow 26 mm 51

[answerhappygod]

Rotameter Manometer Tappings Ferrules Venturi Meter Wide Angle Diffuser Orifice Meter H D Ed If Gn Am B Flow 26 Mm 51 1 (243.39 KiB) Viewed 20 times

Rotameter Manometer Tappings Ferrules Venturi Meter Wide Angle Diffuser Orifice Meter H D Ed If Gn Am B Flow 26 Mm 51 2 (243.39 KiB) Viewed 20 times

this flow rate experiment
1-) try to explain why there are differences between your discharge results?
2-) try to explain why the CD of venturimeter takes different values between different columns?

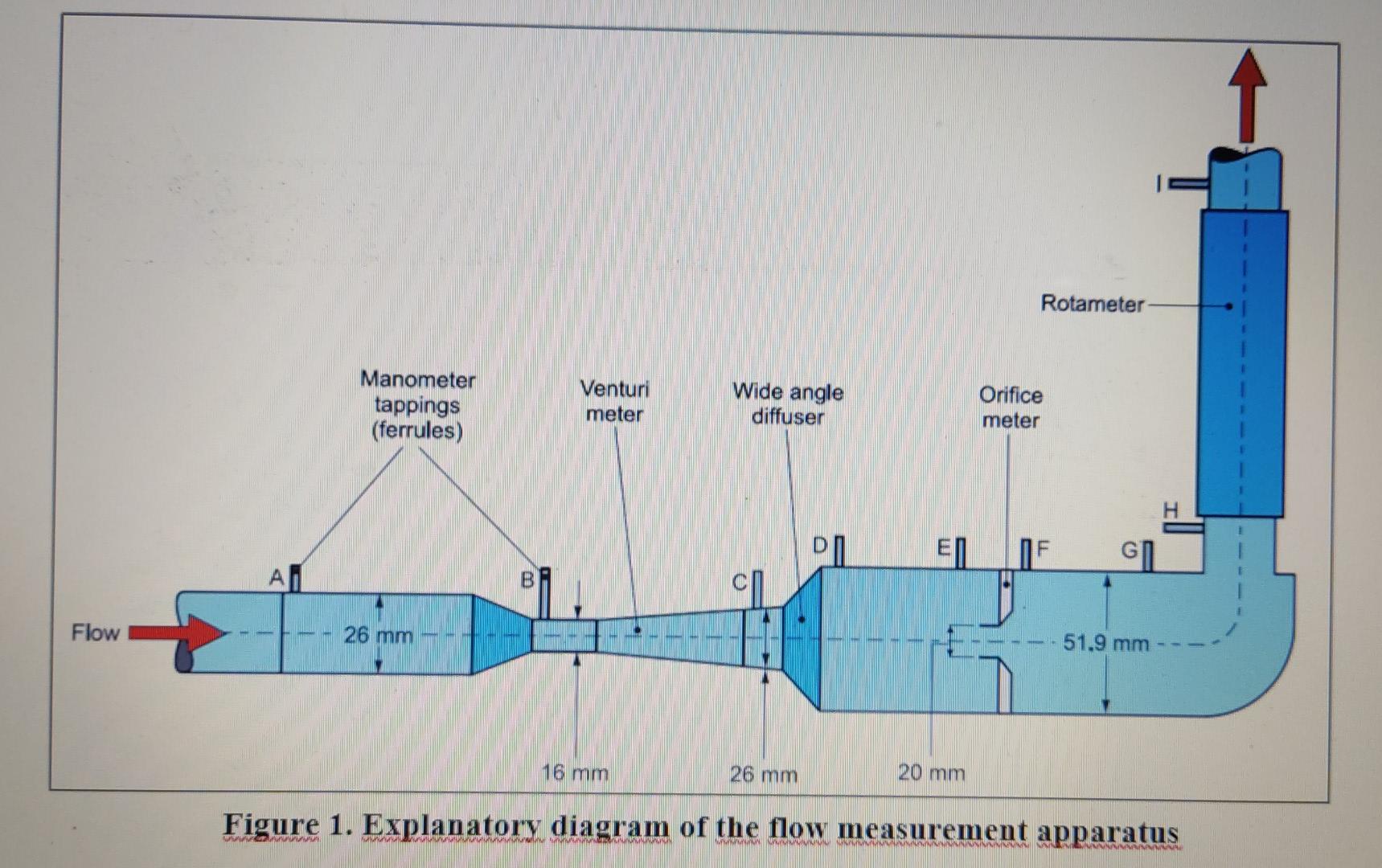

Rotameter Manometer tappings (ferrules) Venturi meter Wide angle diffuser Orifice meter H D. ED IF GN AM B Flow 26 mm 51.9 mm 16 mm 26 mm 20 mm Figure 1. Explanatory diagram of the flow measurement apparatus
Rotameter Manometer tappings (ferrules) Venturi meter Wide angle diffuser Orifice meter H D. ED IF GN AM B Flow 26 mm 51.9 mm 16 mm 26 mm 20 mm Figure 1. Explanatory diagram of the flow measurement apparatus
