Question 10 1 pts A load impedance ZL = 35 - 341 N2 is connected to a 57 12 transmission line. Insert a shunt inductor t

Post by answerhappygod »

Question 10 1 Pts A Load Impedance Zl 35 341 N2 Is Connected To A 57 12 Transmission Line Insert A Shunt Inductor T 1
Question 10 1 Pts A Load Impedance Zl 35 341 N2 Is Connected To A 57 12 Transmission Line Insert A Shunt Inductor T 1 (56.75 KiB) Viewed 12 times

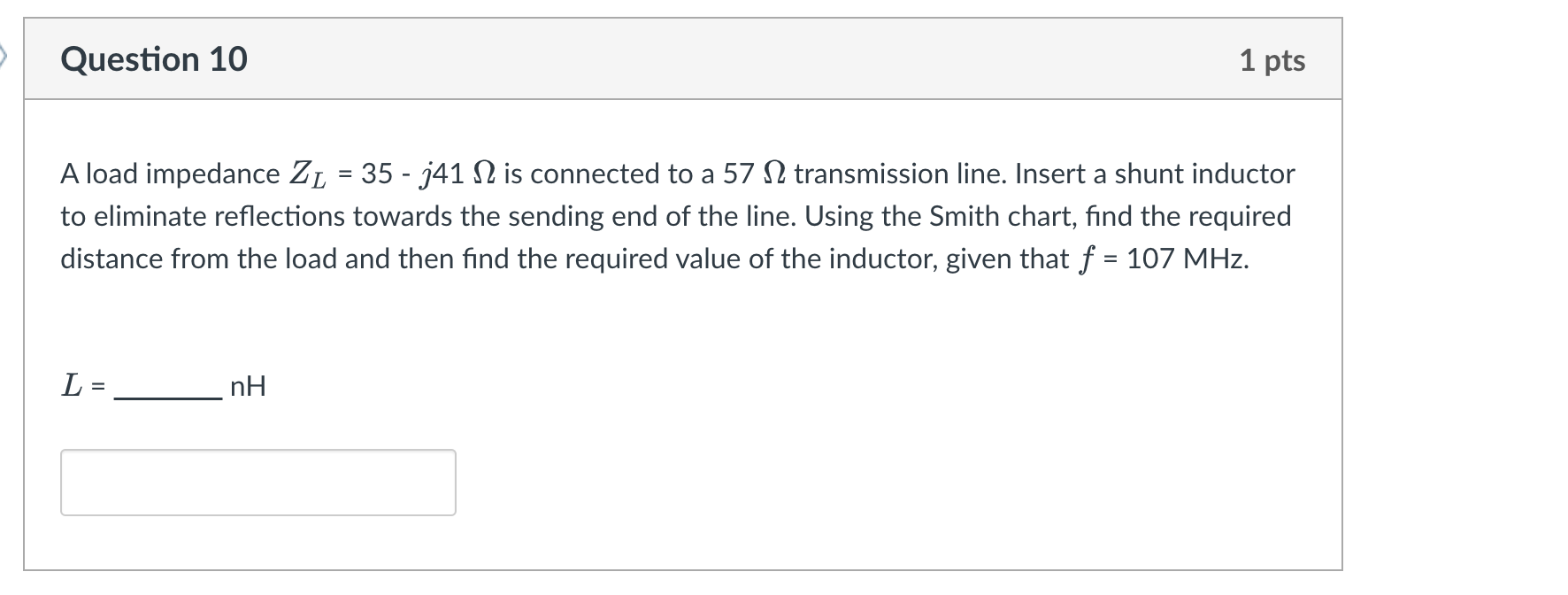

Question 10 1 pts A load impedance ZL = 35 - 341 N2 is connected to a 57 12 transmission line. Insert a shunt inductor to eliminate reflections towards the sending end of the line. Using the Smith chart, find the required distance from the load and then find the required value of the inductor, given that f = 107 MHz. = 로 L = nH
