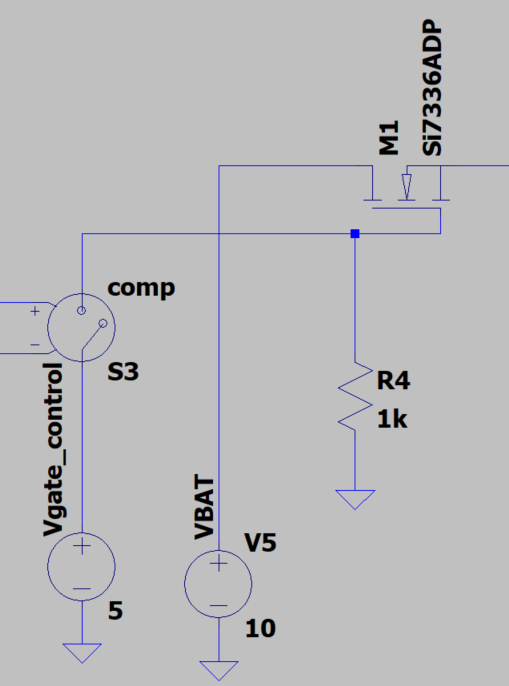

1 Vgate Control 5 S3 Comp Vbat 10 V5 M1 Si7336adp 1 (31.61 KiB) Viewed 13 times
Design a discrete DCDC Buck Converter with voltage feedback
which generates 3.3 V from a 12 V supply. A real MOSFET will be
used as a switch. Plot the output voltage of the DCDC Converter for
an output power of 2.5 W. - To take into account the loss of the
inductor, use a series resistor of 0.5 Ohm in series with the
inductor. Simulate the efficiency of the Buck Converter for an
output power of 2.5 W
PLEASE SOLVE FOR THE ABOVE CİRCUİT
