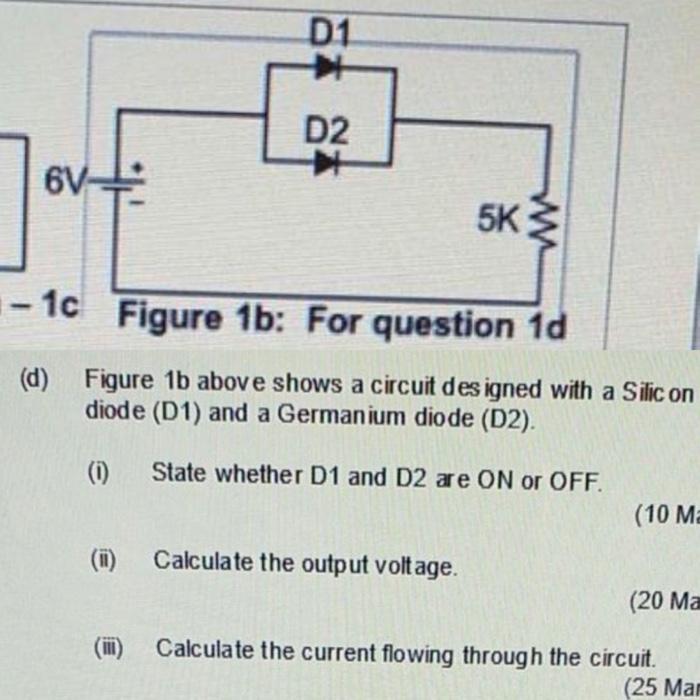

D1 别 D2 Do7 6V 5KS | - 10 Figure 1b: For question 10 1d (d) Figure 1b above shows a circuit designed with a Silicon diode (D1) and a Germanium diode (D2). (0) State whether D1 and D2 are ON or OFF. (10 ME (D) Calculate the output voltage. (20 Ma (im) Calculate the current flowing through the circuit. (25 Mar
