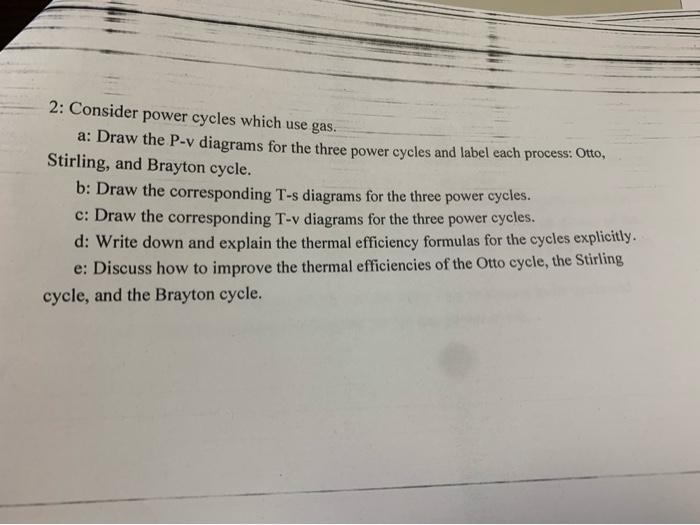

2: Consider power cycles which use gas. a: Draw the P-v diagrams for the three power cycles and label each process: Otto, Stirling, and Brayton cycle. b: Draw the corresponding T-s diagrams for the three power cycles. c: Draw the corresponding T-v diagrams for the three power cycles. d: Write down and explain the thermal efficiency formulas for the cycles explicitly. e: Discuss how to improve the thermal efficiencies of the Otto cycle, the Stirling cycle, and the Brayton cycle.
