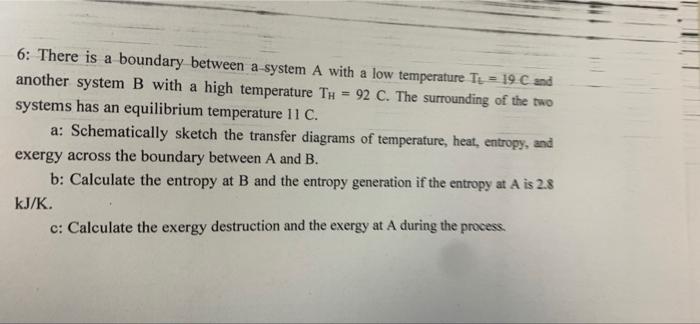

6: There is a boundary between a system A with a low temperature Tu = 19 C and another system B with a high temperature TH = 92 C. The surrounding of the two systems has an equilibrium temperature 11 C. a: Schematically sketch the transfer diagrams of temperature, heat, entropy, and exergy across the boundary between A and B. b: Calculate the entropy at B and the entropy generation if the entropy at A is 2.8 KJ/K. c: Calculate the exergy destruction and the exergy at A during the process.
