Assignment 11 Problem (20 pts.) A. Given For the circuit Ib + 1022 05A 20V + 1002 Vo B. Determine Step 1: The number of

Post by answerhappygod »

Assignment 11 Problem 20 Pts A Given For The Circuit Ib 1022 05a 20v 1002 Vo B Determine Step 1 The Number Of 1
Assignment 11 Problem 20 Pts A Given For The Circuit Ib 1022 05a 20v 1002 Vo B Determine Step 1 The Number Of 1 (74.86 KiB) Viewed 23 times

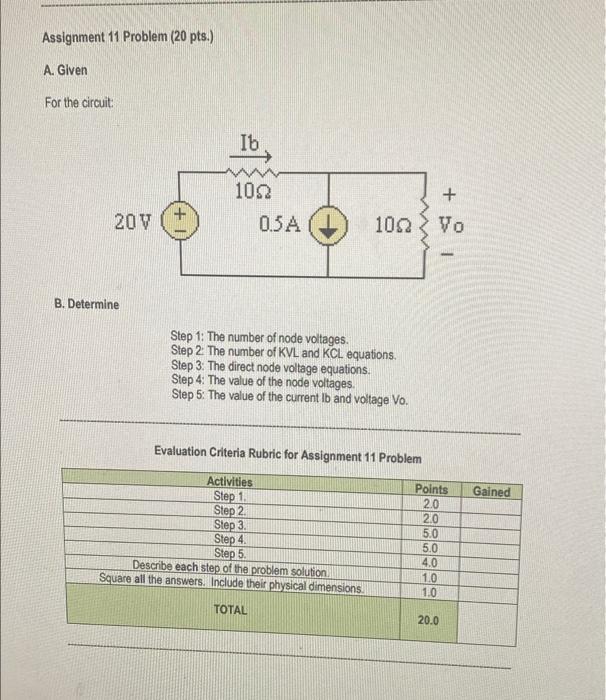

Assignment 11 Problem (20 pts.) A. Given For the circuit Ib + 1022 05A 20V + 1002 Vo B. Determine Step 1: The number of node voltages. Step 2. The number of KVL and KCL equations. Step 3: The direct node voltage equations. Step 4: The value of the node voltages. Step 5: The value of the current Ib and voltage Vo. Evaluation Criteria Rubric for Assignment 11 Problem Gained Activities Step 1. Step 2 Step 3. Step 4. Step 5. Describe each step of the problem solution Square all the answers. Include their physical dimensions. Points 2.0 2.0 5.0 5.0 4.0 1.0 1.0 ololololololo TOTAL 20.0
