Q2. Consider a router that interconnects three organizations: Organization A, Organization B, and Organization C. Assume

[answerhappygod]

Q2 Consider A Router That Interconnects Three Organizations Organization A Organization B And Organization C Assume 1 (47.6 KiB) Viewed 53 times

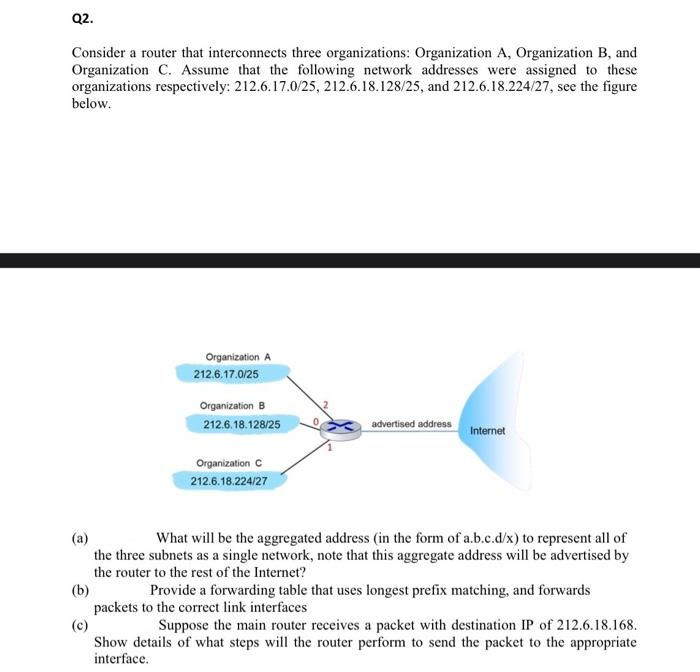

Q2. Consider a router that interconnects three organizations: Organization A, Organization B, and Organization C. Assume that the following network addresses were assigned to these organizations respectively: 212.6.17.0/25, 212.6.18.128/25, and 212.6.18.224/27, see the figure below. Organization A 212.6.17.0/25 Organization 212.6.18.128/25 advertised address Internet Organization 212.6.18.224/27 (a) What will be the aggregated address in the form of a.b.c.d/x) to represent all of the three subnets as a single network, note that this aggregate address will be advertised by the router to the rest of the Internet? (b) Provide a forwarding table that uses longest prefix matching, and forwards packets to the correct link interfaces (c) Suppose the main router receives a packet with destination IP of 212.6.18.168. Show details of what steps will the router perform to send the packet to the appropriate interface.
