Instruction: Show the solution that justifies your answer. No solution, no points. (2 points each) 1. What is the amount

[answerhappygod]

Instruction Show The Solution That Justifies Your Answer No Solution No Points 2 Points Each 1 What Is The Amount 1 (73.02 KiB) Viewed 13 times

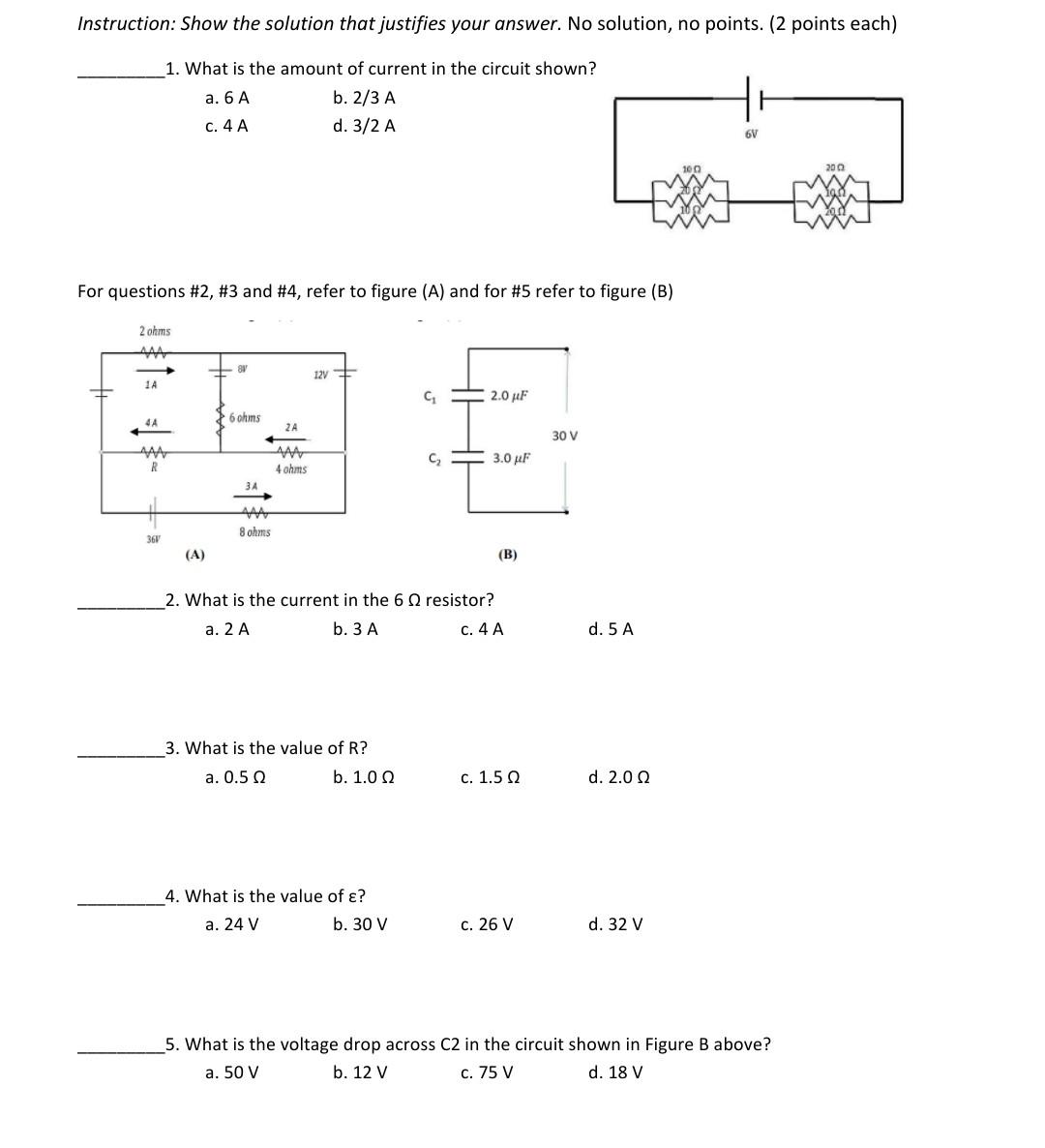

Instruction: Show the solution that justifies your answer. No solution, no points. (2 points each) 1. What is the amount of current in the circuit shown? a. 6 A b. 2/3 A c. 4 A d. 3/2 A 6V 100 200 품 200 For questions #2, #3 and #4, refer to figure (A) and for #5 refer to figure (B) 2 ohms AMA 8 12V + 1A C 2.0 F 6 ohms 4A ZA 30 V AAA R C 3.0 pF 4 ohms 3A 1 8 ohms 36V (A) (B) 2. What is the current in the 6 resistor? a. 2 A b. 3 A C. 4 A d. 5 A 3. What is the value of R? a. 0.5 Q2 b. 1.02 C. 1.5 Ω d. 2.012 4. What is the value of £? a. 24 V b. 30 V c. 26 V d. 32 V 5. What is the voltage drop across C2 in the circuit shown in Figure B above? a. 50 V b. 12 V . c. 75 V d. 18 V
