5. A sandstone bed strikes 1400 across a stream. The stream flows down a narrow gorge with vertical walls. The apparent

[answerhappygod]

5 A Sandstone Bed Strikes 1400 Across A Stream The Stream Flows Down A Narrow Gorge With Vertical Walls The Apparent 1 (19.29 KiB) Viewed 11 times

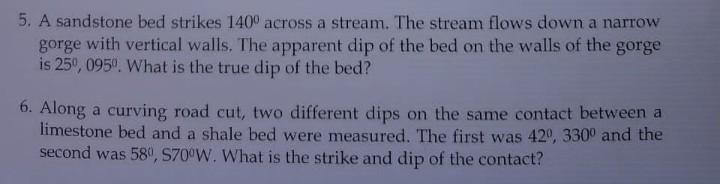

5. A sandstone bed strikes 1400 across a stream. The stream flows down a narrow gorge with vertical walls. The apparent dip of the bed on the walls of the gorge is 250,0950. What is the true dip of the bed? 6. Along a curving road cut, two different dips on the same contact between a limestone bed and a shale bed were measured. The first was 420, 3300 and the second was 580, S700W. What is the strike and dip of the contact?
