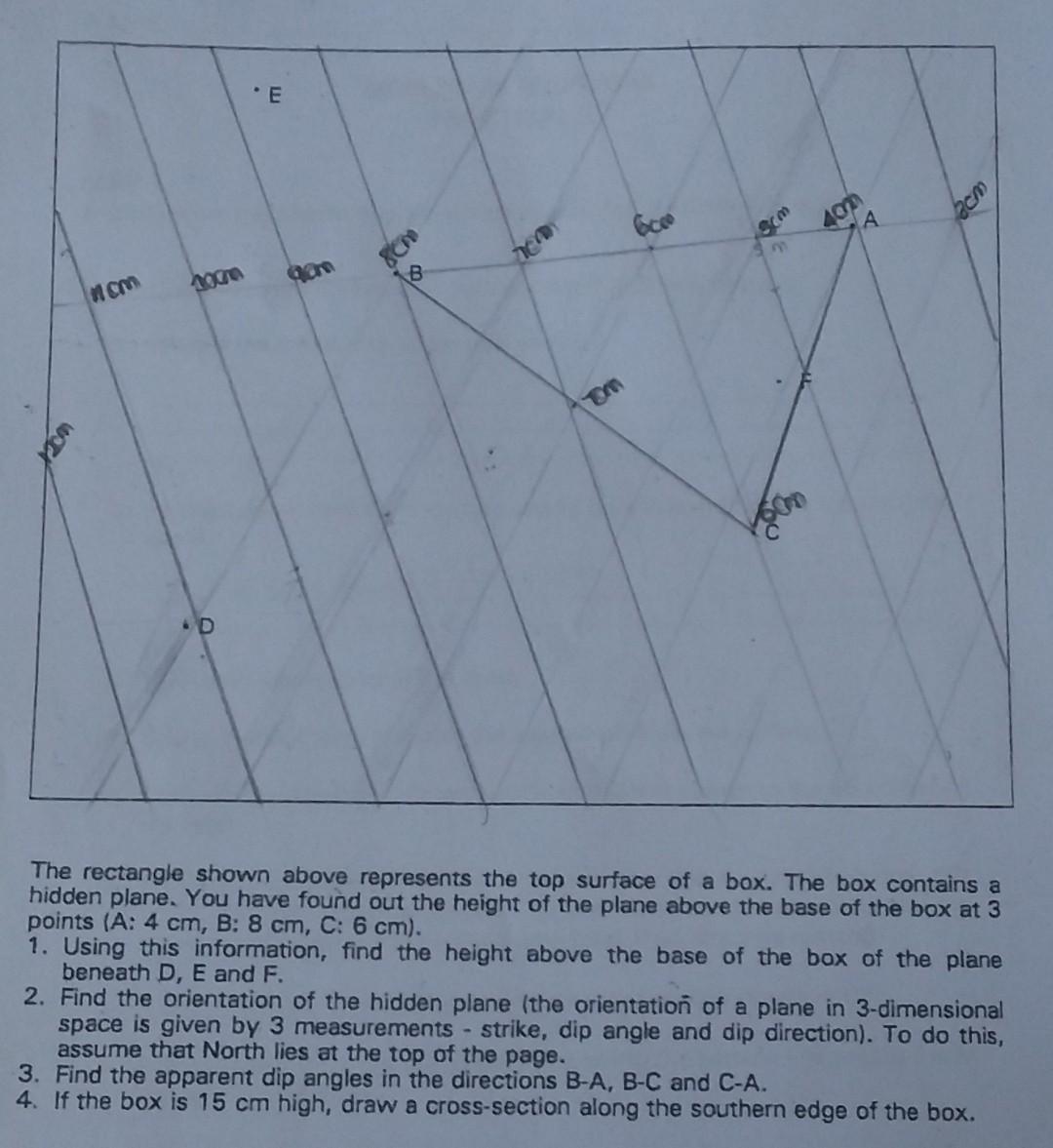

*E 2cm 6.com 400 867 go mcm um 60 . The rectangle shown above represents the top surface of a box. The box contains a hidden plane. You have found out the height of the plane above the base of the box at 3 points (A: 4 cm, B: 8 cm, C: 6 cm). 1. Using this information, find the height above the base of the box of the plane beneath D, E and F. 2. Find the orientation of the hidden plane (the orientation of a plane in 3-dimensional space is given by 3 measurements - strike, dip angle and dip direction). To do this, assume that North lies at the top of the page. 3. Find the apparent dip angles in the directions B-A, B-C and C-A. 4. If the box is 15 cm high, draw a cross-section along the southern edge of the box.
