+1 1 2 3 4 5 6 7 8 9 Transcriptional stop sequence +1 TATA box ATG TAA AUG UAA Here is a diagram of a human gene in the

[answerhappygod]

1 1 2 3 4 5 6 7 8 9 Transcriptional Stop Sequence 1 Tata Box Atg Taa Aug Uaa Here Is A Diagram Of A Human Gene In The 1 (165.48 KiB) Viewed 10 times

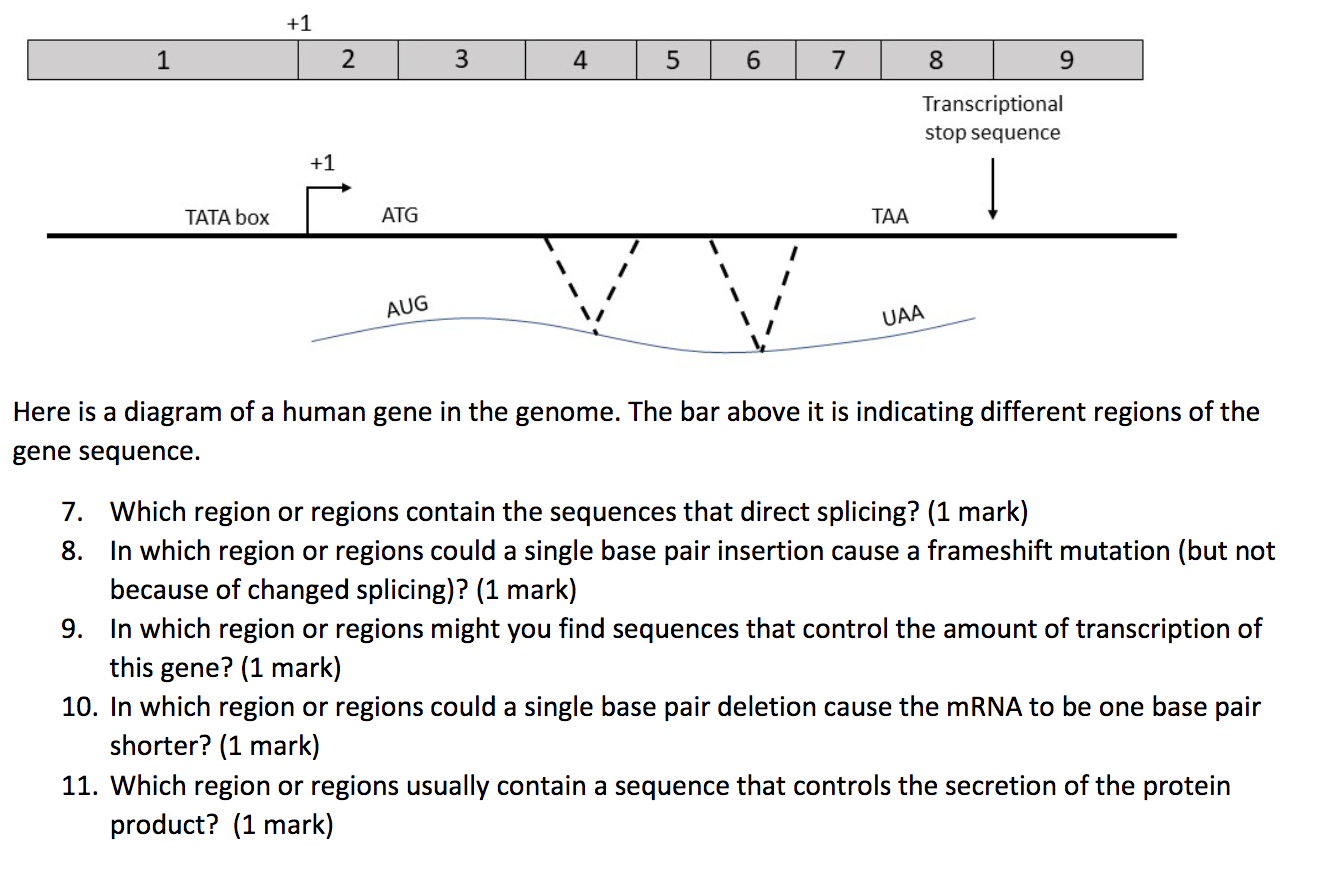

+1 1 2 3 4 5 6 7 8 9 Transcriptional stop sequence +1 TATA box ATG TAA AUG UAA Here is a diagram of a human gene in the genome. The bar above it is indicating different regions of the gene sequence. 7. Which region or regions contain the sequences that direct splicing? (1 mark) 8. In which region or regions could a single base pair insertion cause a frameshift mutation (but not because of changed splicing)? (1 mark) 9. In which region or regions might you find sequences that control the amount of transcription of this gene? (1 mark) 10. In which region or regions could a single base pair deletion cause the mRNA to be one base pair shorter? (1 mark) 11. Which region or regions usually contain a sequence that controls the secretion of the protein product? (1 mark)
