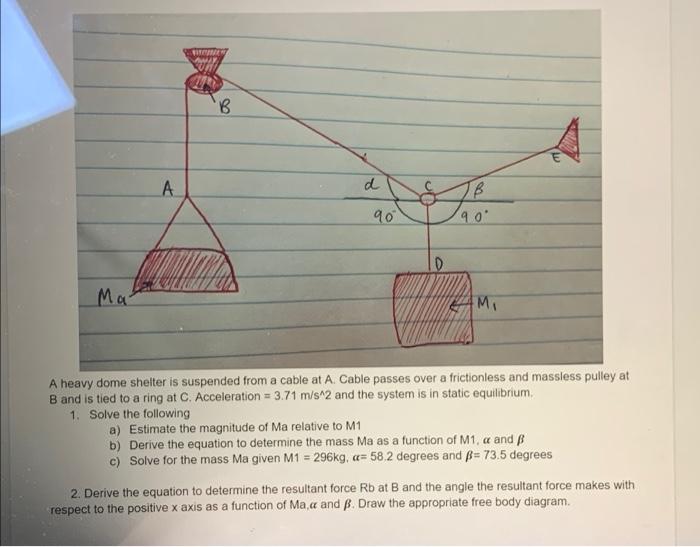

A POWER B d 90° B 90° D Ma A heavy dome shelter is suspended from a cable at A. Cable passes over a frictionless and massless pulley at B and is tied to a ring at C. Acceleration = 3.71 m/s^2 and the system is in static equilibrium. 1. Solve the following a) Estimate the magnitude of Ma relative to M1 b) Derive the equation to determine the mass Ma as a function of M1, a and B c) Solve for the mass Ma given M1 = 296kg, a= 58.2 degrees and ß= 73.5 degrees 2. Derive the equation to determine the resultant force Rb at B and the angle the resultant force makes with respect to the positive x axis as a function of Ma,a and B. Draw the appropriate free body diagram.
