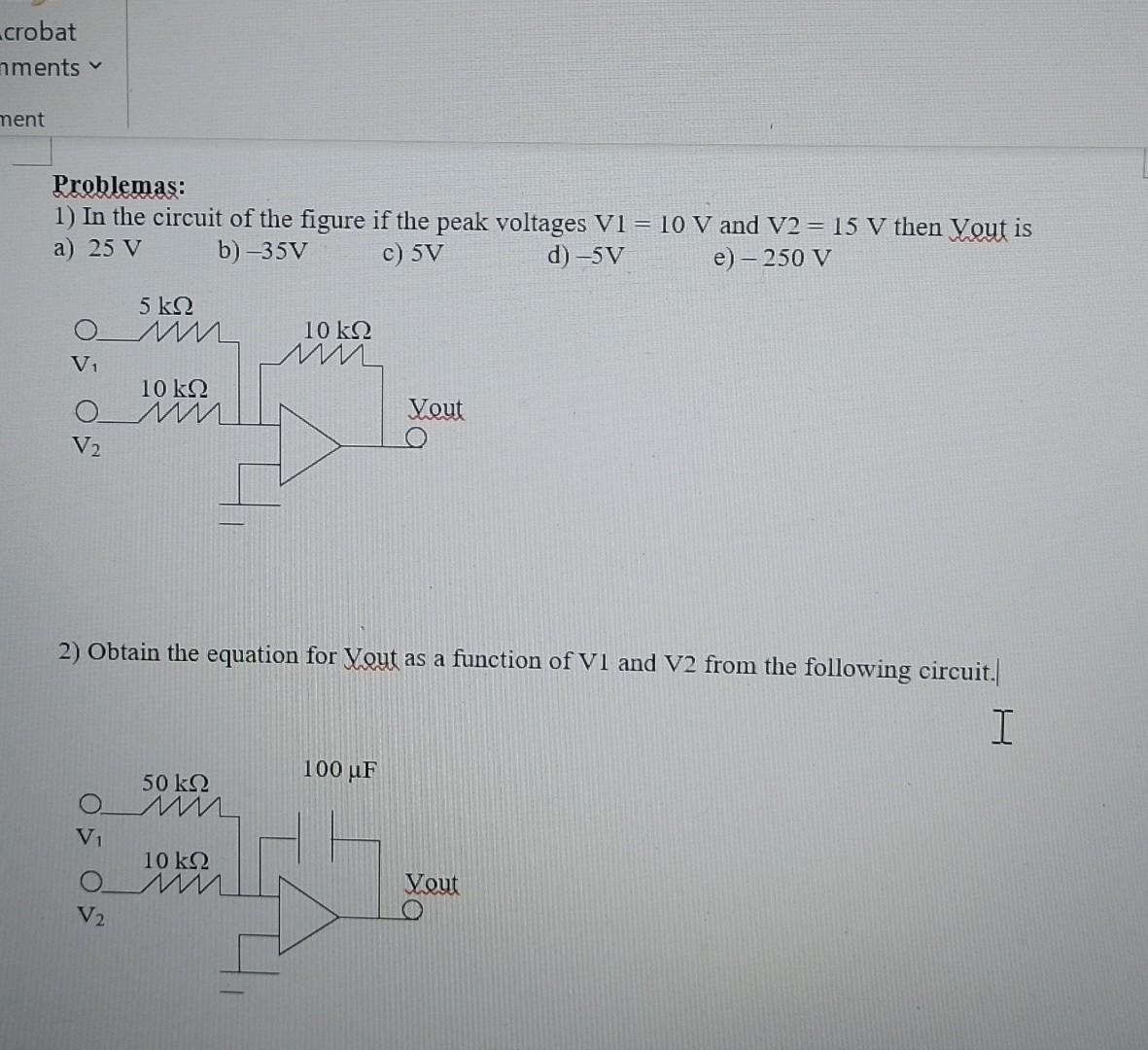

1. In the circuit of the figure if the peak voltage are V1=10 and V2=15 then Vout is
a)25 V b)-35V c)5V d)-5V e)-250V
2. obtain the equation for VOut as a function of V1 and V2 from the following circuit
crobat nments ✓ ment Problemas: 1) In the circuit of the figure if the peak voltages V1 = 10 V and V2 = 15 V then Vout is a) 25 V b) -35V c) 5V d)-5V e) - 250 V 5 ΚΩ ми V₁ 10 ΚΩ O ми Yout V₂ 2) Obtain the equation for Yout as a function of V1 and V2 from the following circuit. I 100 μF 50 ΚΩ mn 10 ΚΩ ми 05 05 V₁ O V₂ 10 ΚΩ Yout
