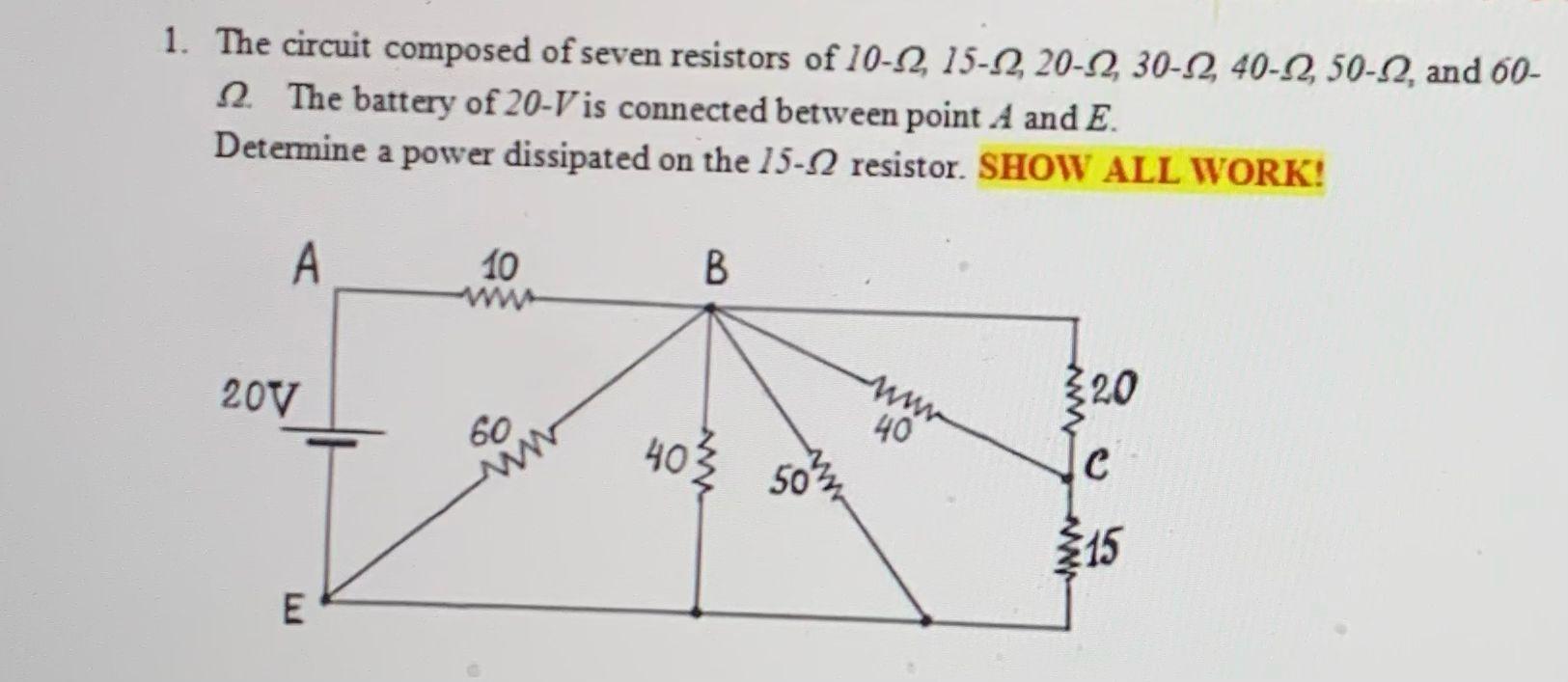

1. The circuit composed of seven resistors of 10-12, 15-2, 20-2, 30-2, 40-2, 50-2, and 60- 2. The battery of 20-V is connected between point A and E. Determine a power dissipated on the 15-2 resistor. SHOW ALL WORK! B 10 A 20 www 40 403 20V E 60 50% с 15 wwww
