Calculate the radius of gyration for the system of two tubes and a seat that form a swing with respect to axis A shown in the figure. The dimensions of this system are shown in the figure below.
The tubes have a mass of 7 kg/m. This means that each meter of tube has a mass of 7. The tubes can be considered thin rods (thin rod).
The seat has a mass of 13 kg and can be considered as a thin plate.
Note that several views of the swing are provided so that you can better understand what the reference axis A is and the necessary dimensions.

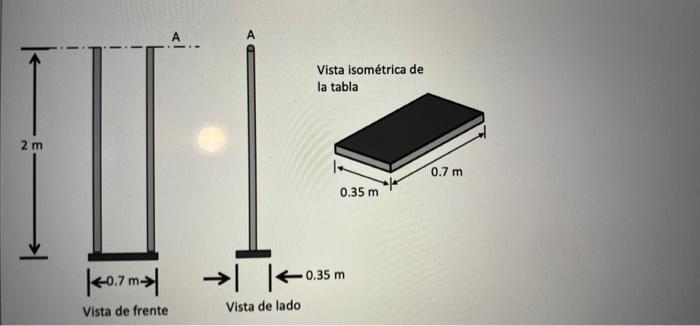

Calculate The Radius Of Gyration For The System Of Two Tubes And A Seat That Form A Swing With Respect To Axis A Shown I 1 (19.63 KiB) Viewed 8 times
2 m I |<0.7 m Vista de frente Vista de lado Vista isométrica de la tabla 0.35 m 0.35 m 0.7 m
