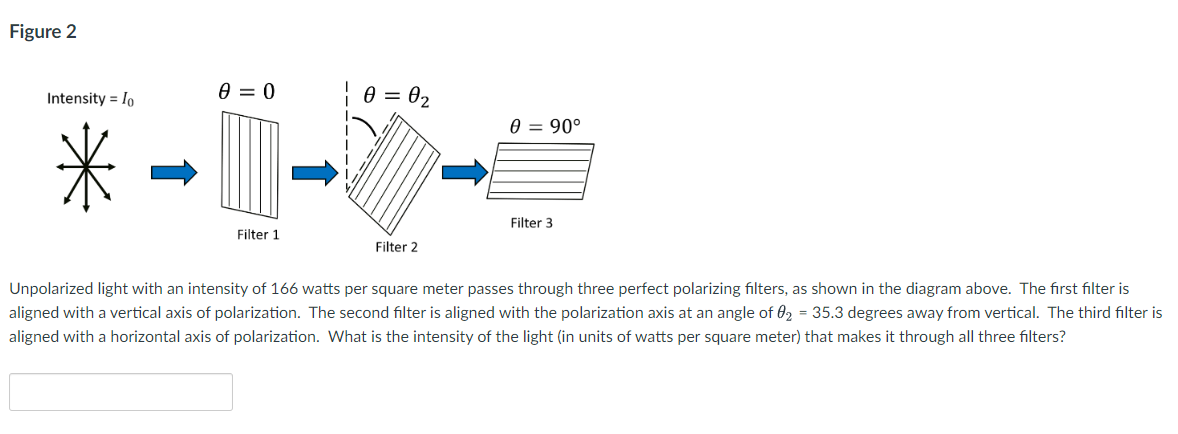

Figure 2 0 = 0₂ Intensity = Io 0 = 90° * Filter 3 Filter 1 Filter 2 Unpolarized light with an intensity of 166 watts per square meter passes through three perfect polarizing filters, as shown in the diagram above. The first filter is aligned with a vertical axis of polarization. The second filter is aligned with the polarization axis at an angle of 0₂ = 35.3 degrees away from vertical. The third filter is aligned with a horizontal axis of polarization. What is the intensity of the light (in units of watts per square meter) that makes it through all three filters? 0=0
