1. The circuit composed of seven resistors of 10-12, 15-2, 20-2, 30-52, 40-12, 50-52, and 60- 2. The battery of 20-V is

Post by answerhappygod »

1 The Circuit Composed Of Seven Resistors Of 10 12 15 2 20 2 30 52 40 12 50 52 And 60 2 The Battery Of 20 V Is 1
1 The Circuit Composed Of Seven Resistors Of 10 12 15 2 20 2 30 52 40 12 50 52 And 60 2 The Battery Of 20 V Is 1 (30.31 KiB) Viewed 22 times

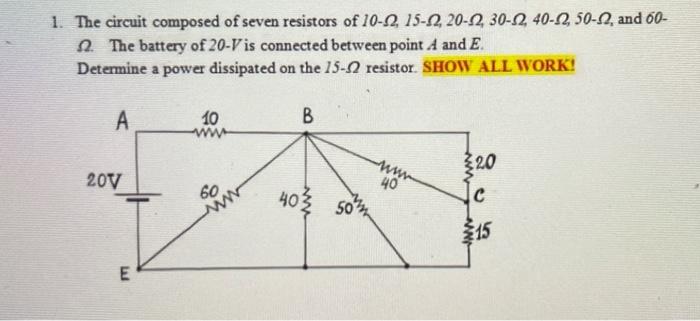

1. The circuit composed of seven resistors of 10-12, 15-2, 20-2, 30-52, 40-12, 50-52, and 60- 2. The battery of 20-V is connected between point A and E. Determine a power dissipated on the 15-2 resistor. SHOW ALL WORK! B 10 A 20 www 40 20V E 60 www 40 С 15
