a a 10 Shown in the diagram is a thermodynamics cycle (a-b-c-a) performed on an ideal gas. Assume no change in bond ener

[answerhappygod]

A A 10 Shown In The Diagram Is A Thermodynamics Cycle A B C A Performed On An Ideal Gas Assume No Change In Bond Ener 1 (29.49 KiB) Viewed 9 times

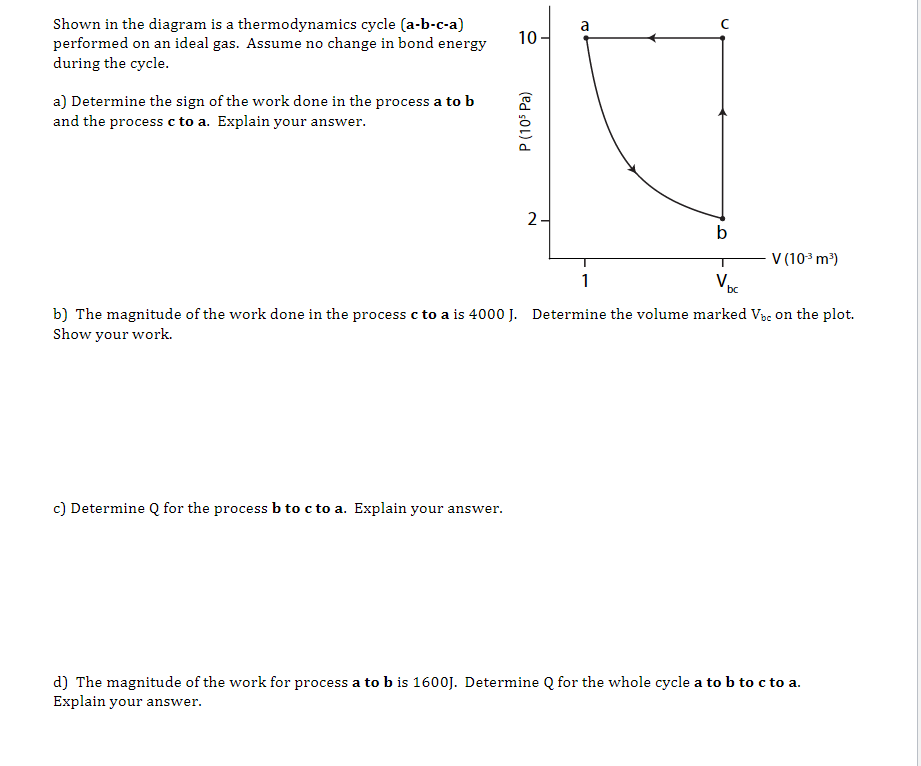

a a 10 Shown in the diagram is a thermodynamics cycle (a-b-c-a) performed on an ideal gas. Assume no change in bond energy during the cycle. a) Determine the sign of the work done in the process a to b and the process c to a. Explain your answer. P (105 Pa) 2- V(10 m) 1 Voc b) The magnitude of the work done in the process c to a is 4000 J. Determine the volume marked Voc on the plot. Show your work c) Determine Q for the process b to c to a. Explain your answer. d) The magnitude of the work for process a to b is 1600J. Determine Q for the whole cycle a to b to c to a. Explain your answer.
