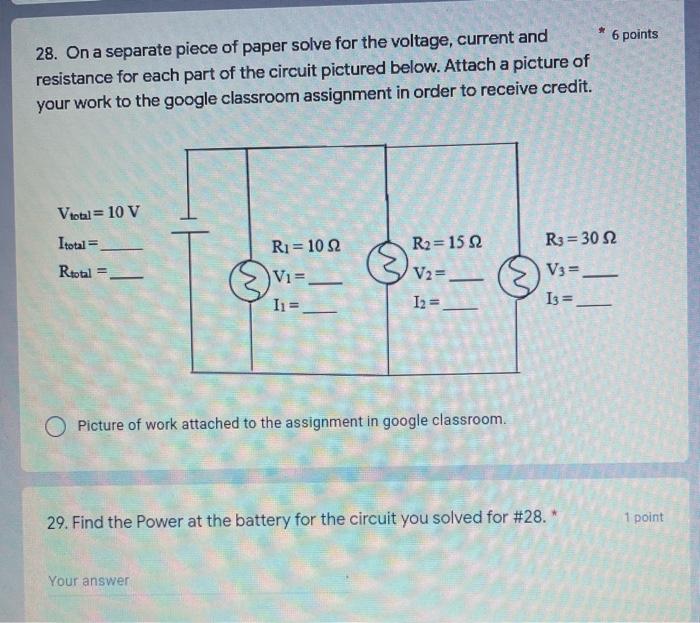

6 points 28. On a separate piece of paper solve for the voltage, current and resistance for each part of the circuit pictured below. Attach a picture of your work to the google classroom assignment in order to receive credit. Vtotal = 10 V Ri= 10 12 R2=152 R3 = 30 S2 Itotal = Rtotal = - Vi= I1 = V2= 12= V3= - 13=_ Picture of work attached to the assignment in google classroom. 29. Find the Power at the battery for the circuit you solved for #28. 1 point Your answer

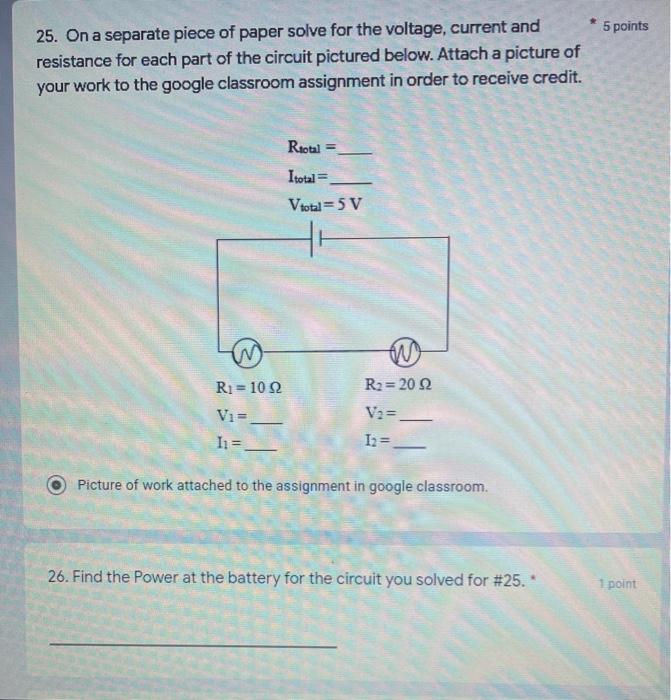

5 points 25. On a separate piece of paper solve for the voltage, current and resistance for each part of the circuit pictured below. Attach a picture of your work to the google classroom assignment in order to receive credit. Rtotal I total = Vtotal= 5 V HE w Ri= 102 R2 = 20 22 Vi= I= Va= 12= Picture of work attached to the assignment in google classroom. 26. Find the Power at the battery for the circuit you solved for #25. 1 point
