Five identical 4.0 resistors are used in a mixed series-parallel circuit as shown in the figure. The applied voltage is

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Five identical 4.0 resistors are used in a mixed series-parallel circuit as shown in the figure. The applied voltage is

Post by answerhappygod »

Five Identical 4 0 Resistors Are Used In A Mixed Series Parallel Circuit As Shown In The Figure The Applied Voltage Is 1
Five Identical 4 0 Resistors Are Used In A Mixed Series Parallel Circuit As Shown In The Figure The Applied Voltage Is 1 (35.36 KiB) Viewed 20 times

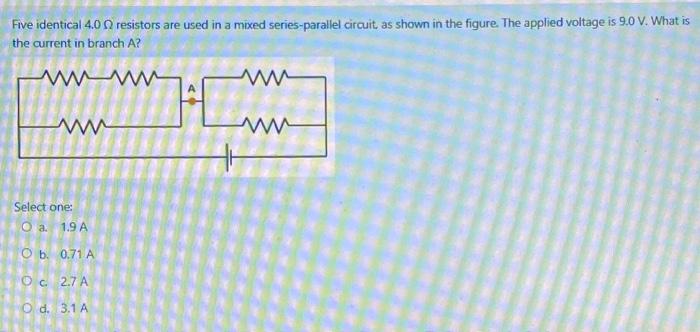

Five identical 4.0 resistors are used in a mixed series-parallel circuit as shown in the figure. The applied voltage is 9.0 V. What is the current in branch A? ww TEL w Select one: O a. 1.9 A O b. 0.71 A Oc2.7 A O d. 3.1 A
