Determine the circuit's behavior for each of the following cases
after S is again closed:
i) The circuit element connecting alpha to beta is an ideal
voltmeter. Also what would the voltmeter measure.
ii) The circuit element connecting alpha to beta is an ideal
ammeter. Also what does this ammeter measure.

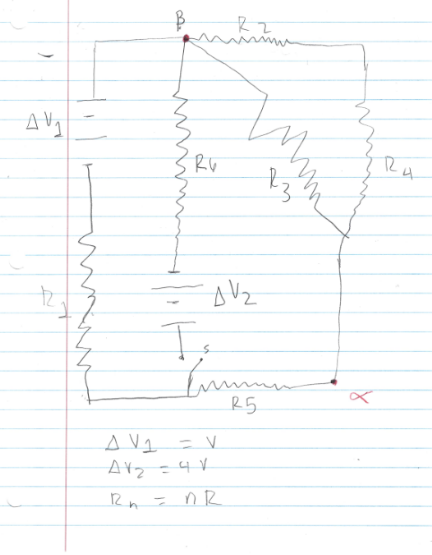

Determine The Circuit S Behavior For Each Of The Following Cases After S Is Again Closed I The Circuit Element Connect 1 (109.79 KiB) Viewed 13 times
