#48 (b) The diagram shows a driven RLC circuit that contains two identical capacitors and two switches. The emf amplitud

[answerhappygod]

48 B The Diagram Shows A Driven Rlc Circuit That Contains Two Identical Capacitors And Two Switches The Emf Amplitud 1 (67.9 KiB) Viewed 9 times

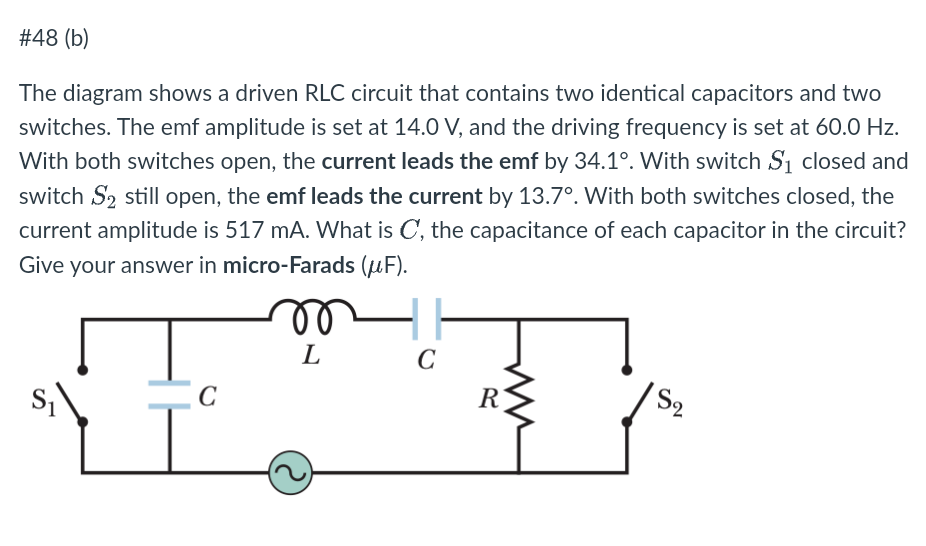

#48 (b) The diagram shows a driven RLC circuit that contains two identical capacitors and two switches. The emf amplitude is set at 14.0 V, and the driving frequency is set at 60.0 Hz. With both switches open, the current leads the emf by 34.1°. With switch S1 closed and switch S2 still open, the emf leads the current by 13.7°. With both switches closed, the current amplitude is 517 mA. What is C, the capacitance of each capacitor in the circuit? Give your answer in micro-Farads (uF). vo L С С Ꭱ GH Si wah (S2
