] Problem 1 a. What is the magnitude of the electric field at a point that is 0.40 m to the right of a small sphere with

[answerhappygod]

Problem 1 A What Is The Magnitude Of The Electric Field At A Point That Is 0 40 M To The Right Of A Small Sphere With 1 (29.67 KiB) Viewed 8 times

Problem 1 A What Is The Magnitude Of The Electric Field At A Point That Is 0 40 M To The Right Of A Small Sphere With 2 (28.92 KiB) Viewed 8 times

Problem 1 A What Is The Magnitude Of The Electric Field At A Point That Is 0 40 M To The Right Of A Small Sphere With 3 (22.08 KiB) Viewed 8 times

Problem 1 A What Is The Magnitude Of The Electric Field At A Point That Is 0 40 M To The Right Of A Small Sphere With 4 (34.83 KiB) Viewed 8 times

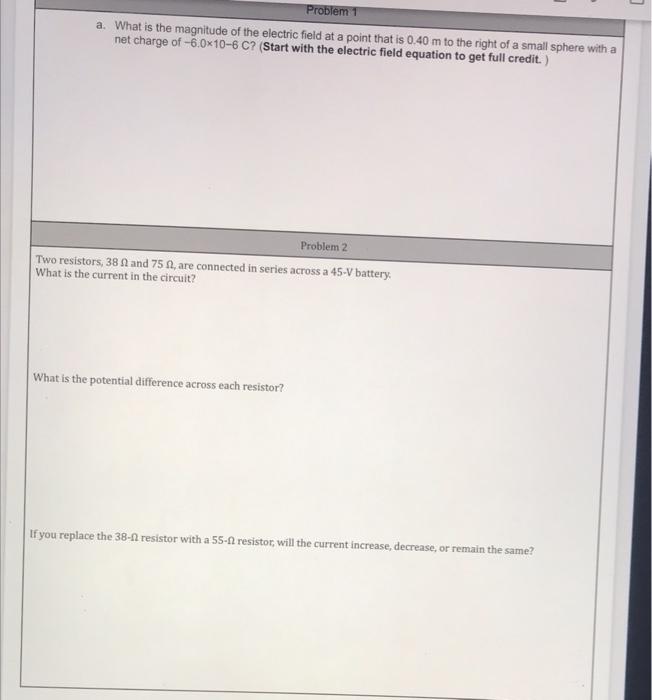

] Problem 1 a. What is the magnitude of the electric field at a point that is 0.40 m to the right of a small sphere with a net charge of -6.0x10-6 C? (Start with the electric field equation to get full credit.) Problem 2 Two resistors, 38 and 75 n are connected in series across a 45-V battery, What is the current in the circuit? What is the potential difference across each resistor? If you replace the 38-1 resistor with a 55-A resistor, will the current increase, decrease, or remain the same?

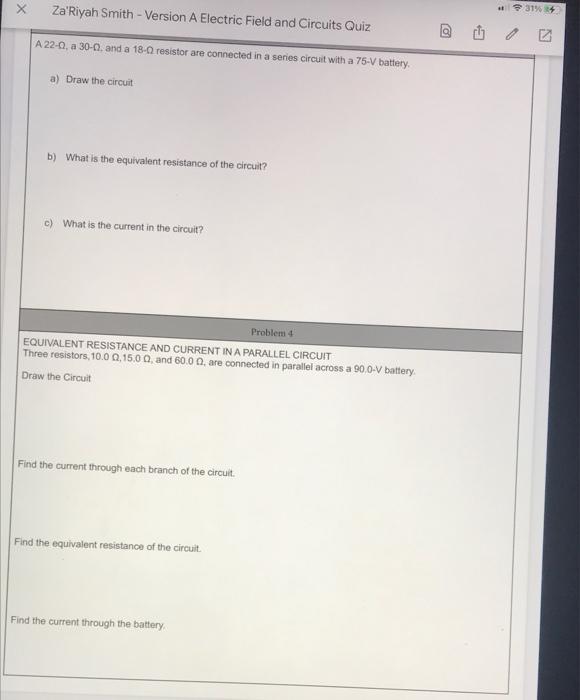

Х Za'Riyah Smith - Version A Electric Field and Circuits Quiz 31% 9 A 22-0. a 30-0, and a 18- resistor are connected in a series circuit with a 75-V battery, a) Draw the circuit b) What is the equivalent resistance of the circuit? c) What is the current in the circuit? Problem EQUIVALENT RESISTANCE AND CURRENT IN A PARALLEL CIRCUIT Three resistors 10.0 0.15.00 and 60.00 are connected in parallel across a 90,0-V battery Draw the Circuit Find the current through each branch of the circuit. Find the equivalent resistance of the circuit Find the current through the battery

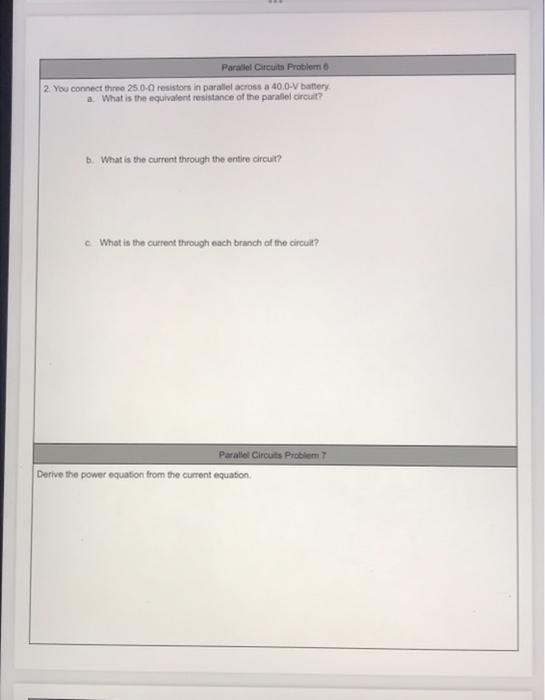

Parallel Circuit Problem 2. You connect three 2500 resistors in parallel across a 40.0-V battery a. What is the equivalent resistance of the parallel circuit? 6. What is the current through the entire circuit? c What is the current through each branch of the circuit? Parallel Circuits Problem Derive the power equation from the current equation

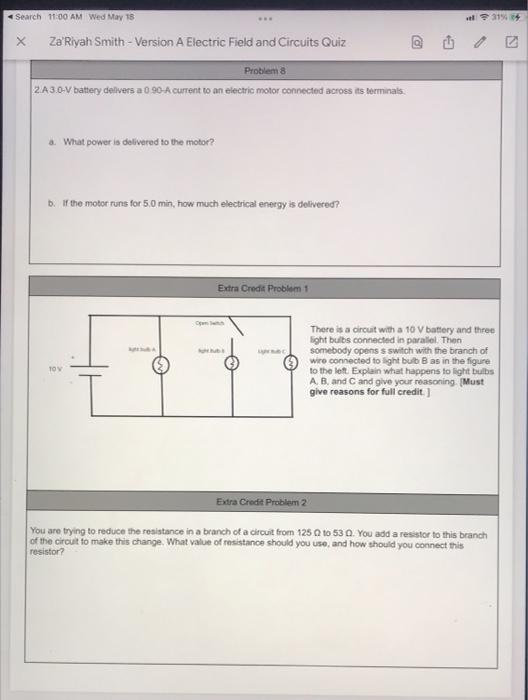

Search 11:00 AM Wed May 16 31964 х Za Riyah Smith - Version A Electric Field and Circuits Quiz Problems 2.A3.0-V battery delivers a 0 90-A current to an electric motor connected across its terminals What power is delivered to the motor? b. If the motor runs for 5.0 min, how much electrical energy is delivered? Extra Credit Problem 1 There is a circuit with a 10 V battery and three light bulbs connected in parallel. Then somebody opens s switch with the branch of wire connected to light bulb B as in the figure to the left. Explain what happens to light bulbs A B and C and give your reasoning (Must give reasons for full credit] TOY Extra Credit Problem 2 You are trying to reduce the resistance in a branch of a circuit from 1250 10 53 . You add a resistor to this branch of the circuit to make this change. What value of resistance should you use, and how should you connect this resistor?
