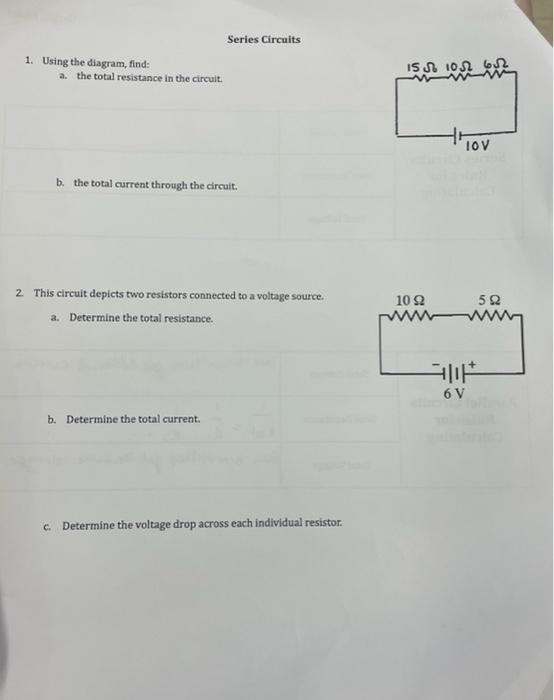

Series Circuits 1. Using the diagram, find: a. the total resistance in the circuit. IS N 1032 IOV b. the total current through the circuit. 2. This circuit depicts two resistors connected to a voltage source. a. Determine the total resistance. 102 592 世 6 V b. Determine the total current. c. Determine the voltage drop across each individual resistor.

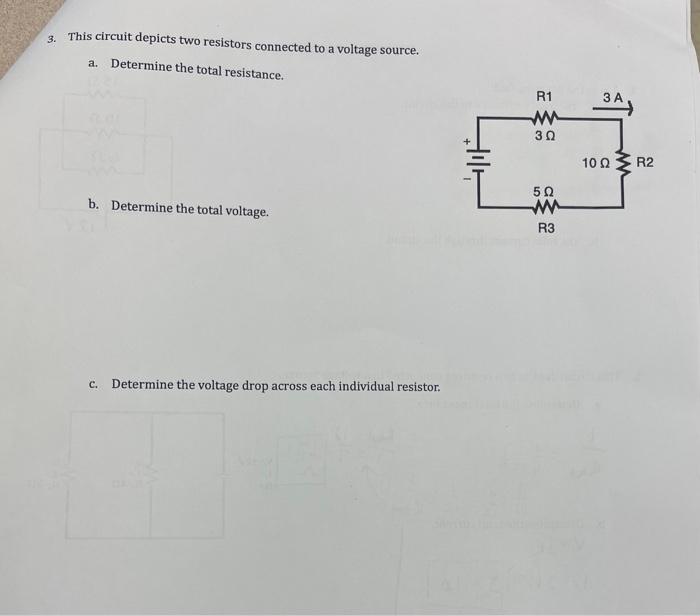

3. This circuit depicts two resistors connected to a voltage source. a. Determine the total resistance. R1 ЗА 30 10Ω R2 522 b. Determine the total voltage. R3 c. Determine the voltage drop across each individual resistor.

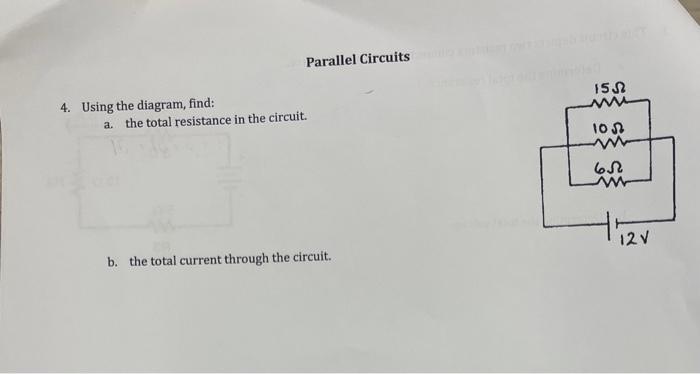

Parallel Circuits 1512 w 4. Using the diagram, find: a. the total resistance in the circuit. 102 12 V b. the total current through the circuit.

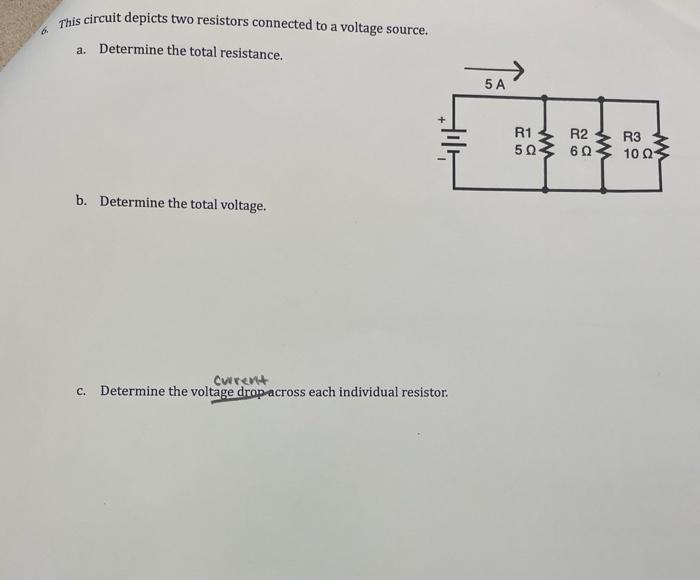

This circuit depicts two resistors connected to a voltage source. a. Determine the total resistance. 5 A R1 R2 5 Ως 6Ω w R3 10Ω w w b. Determine the total voltage. c. curent Determine the voltage drop across each individual resistor.
