Question 3 Not yet answered [20 points] Two converging lenses are separated by a distance L = 60 [cm]. The focal length

[answerhappygod]

Question 3 Not Yet Answered 20 Points Two Converging Lenses Are Separated By A Distance L 60 Cm The Focal Length 1 (72.24 KiB) Viewed 9 times

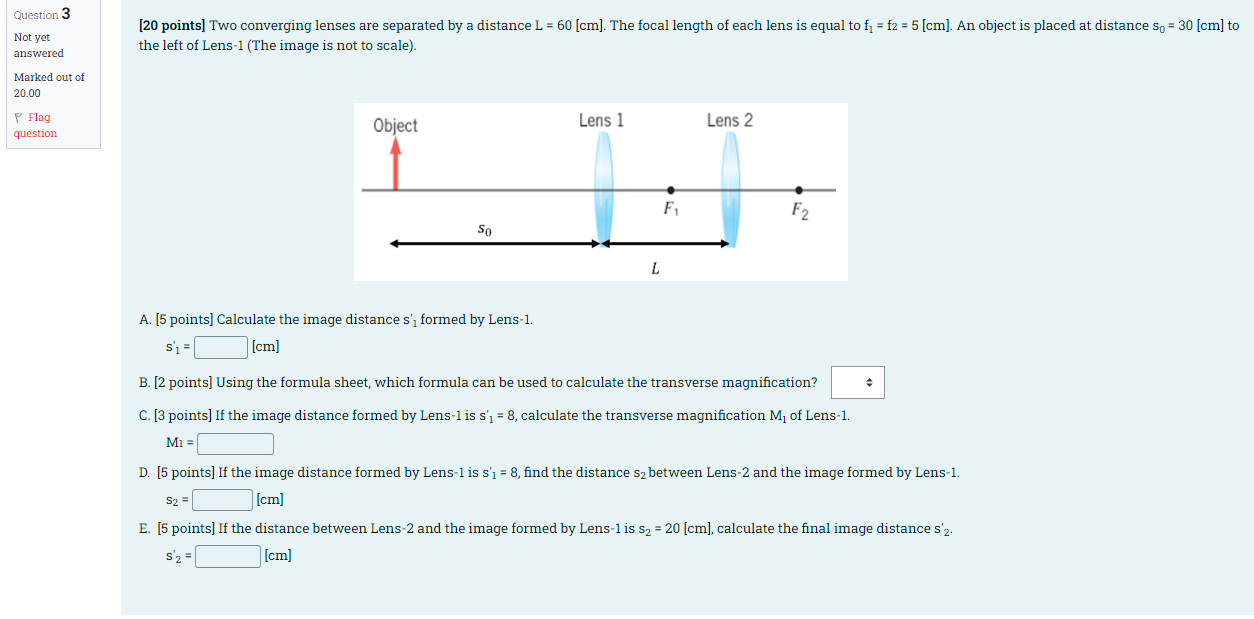

Question 3 Not yet answered [20 points] Two converging lenses are separated by a distance L = 60 [cm]. The focal length of each lens is equal to f; = f2 = 5 [cm]. An object is placed at distance so = 30 [cm] to the left of Lens 1 (The image is not to scale). Marked out of 20.00 P Flag question Object Lens 1 Lens 2 F F2 So L A. [5 points] Calculate the image distance s'ı formed by Lens-1. si [cm] B. [2 points] Using the formula sheet, which formula can be used to calculate the transverse magnification? C. [3 points) If the image distance formed by Lens-l is s'i = 8, calculate the transverse magnification My of Lens-1. Mi = D. [5 points) If the image distance formed by Lens-l is s'i = 8, find the distance Sz between Lens-2 and the image formed by Lens-1. S2 2 = [cm] E. [5 points) If the distance between Lens-2 and the image formed by Lens-l is sz = 20 [cm], calculate the final image distance s'2. s'2 = [cm]
