Consider a red loop centered around the origin. The loop has 3 A current passing, a radius of 0.8 m and axis along the y

[answerhappygod]

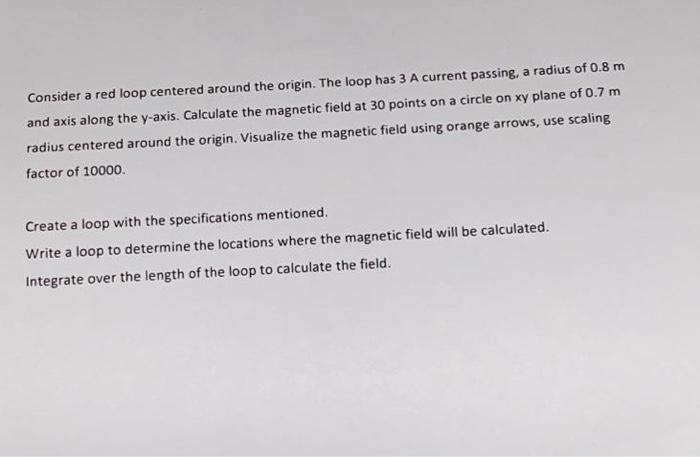

Consider A Red Loop Centered Around The Origin The Loop Has 3 A Current Passing A Radius Of 0 8 M And Axis Along The Y 1 (25.46 KiB) Viewed 6 times

Consider a red loop centered around the origin. The loop has 3 A current passing, a radius of 0.8 m and axis along the y-axis. Calculate the magnetic field at 30 points on a circle on xy plane of 0.7 m radius centered around the origin. Visualize the magnetic field using orange arrows, use scaling factor of 10000. Create a loop with the specifications mentioned. Write a loop to determine the locations where the magnetic field will be calculated. Integrate over the length of the loop to calculate the field.
