2B. Blocks A and B are connected by a cable that passes over a frictionless pulley as shown. If the weight of A is 200 N

Post by answerhappygod »

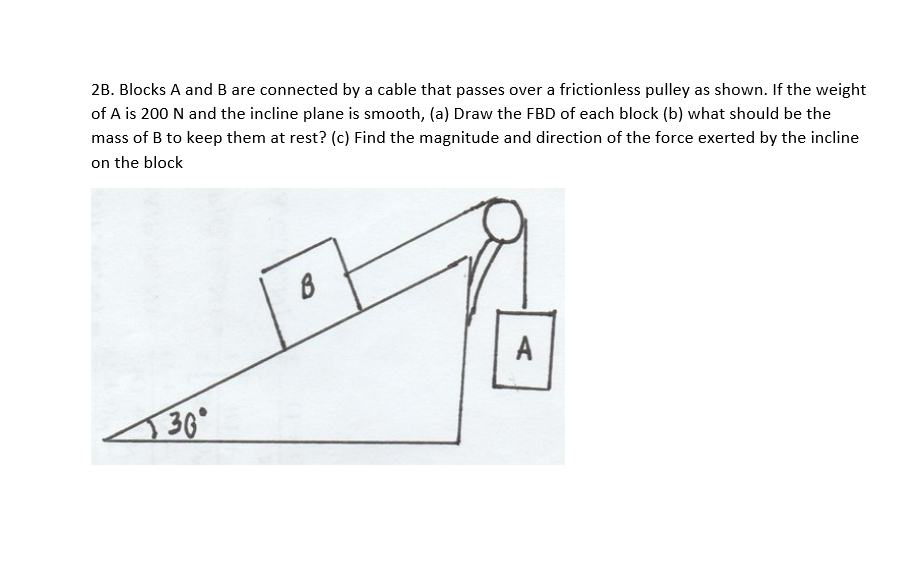

2b Blocks A And B Are Connected By A Cable That Passes Over A Frictionless Pulley As Shown If The Weight Of A Is 200 N 1
2b Blocks A And B Are Connected By A Cable That Passes Over A Frictionless Pulley As Shown If The Weight Of A Is 200 N 1 (159.04 KiB) Viewed 10 times
2B. Blocks A and B are connected by a cable that passes over a frictionless pulley as shown. If the weight of A is 200 N and the incline plane is smooth, (a) Draw the FBD of each block (b) what should be the mass of B to keep them at rest? (c) Find the magnitude and direction of the force exerted by the incline on the block B А 30°
