statics
Statics 1
Statics 1 (133.15 KiB) Viewed 9 times

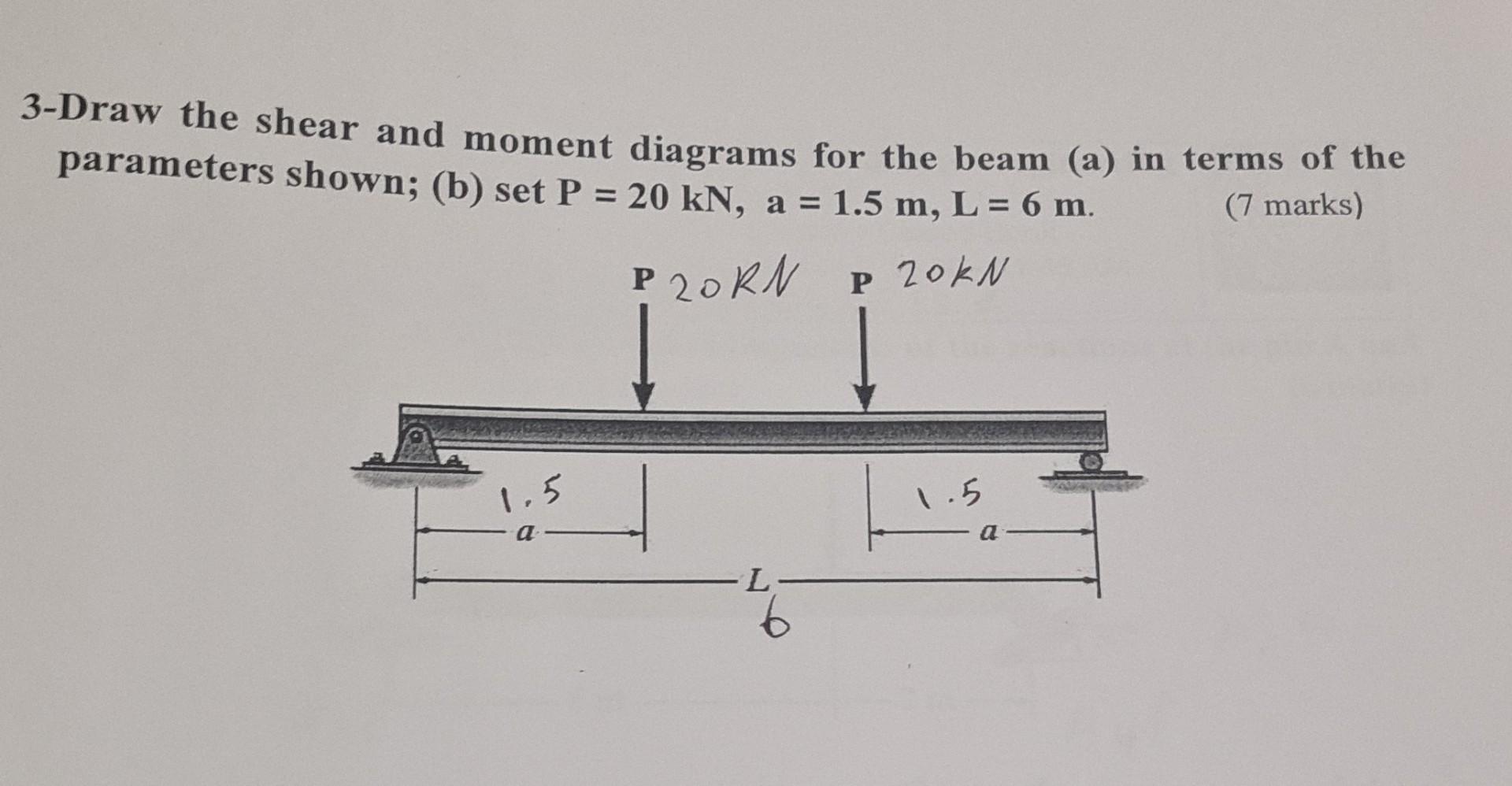

3-Draw the shear and moment diagrams for the beam (a) in terms of the parameters shown; (b) set P = 20 kN, a = 1.5 m, L = 6 m. P 202N P (7 marks) P 2OkN 1.5 Lis .5 L 6
