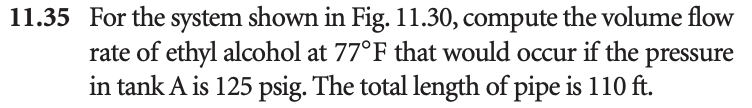

11.35 For the system shown in Fig. 11.30, compute the volume flow rate of ethyl alcohol at 77°F that would occur if the pressure in tank A is 125 psig. The total length of pipe is 110 ft.

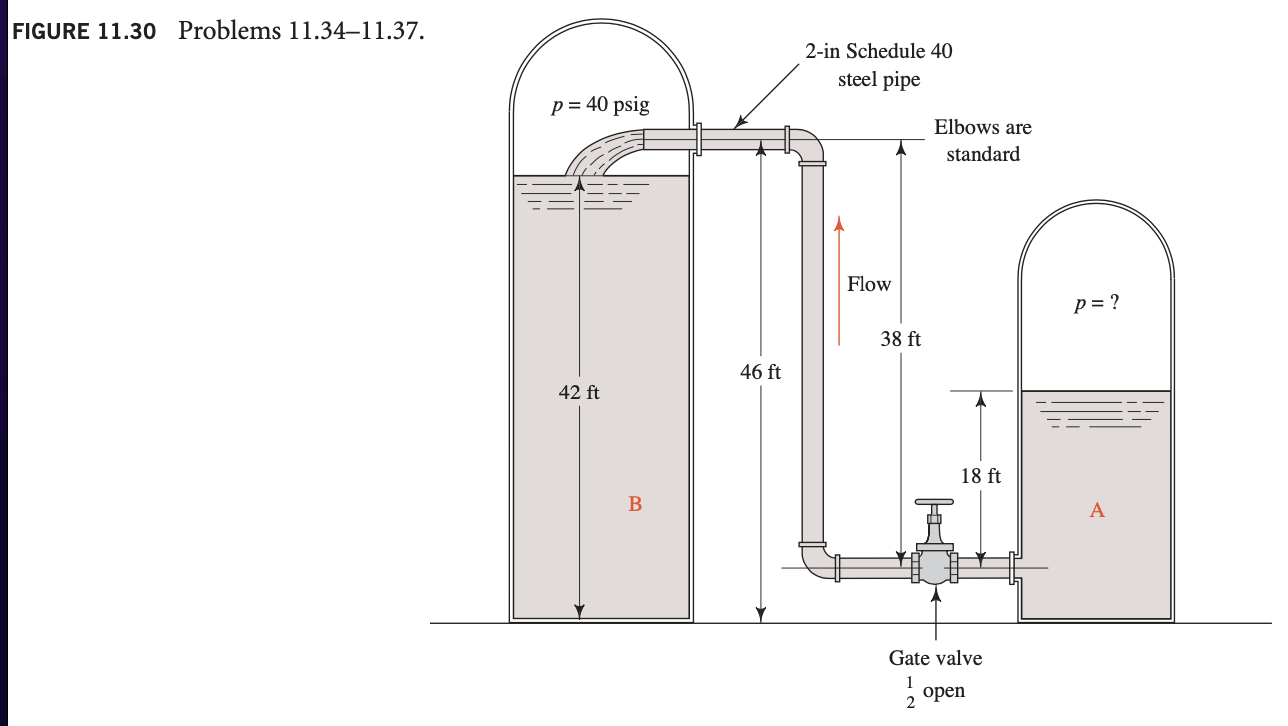

FIGURE 11.30 Problems 11.34–11.37. 2-in Schedule 40 steel pipe p = 40 psig Elbows are standard Flow P= ? 38 ft 46 ft 42 ft 18 ft B. A Gate valve 1 2 open
