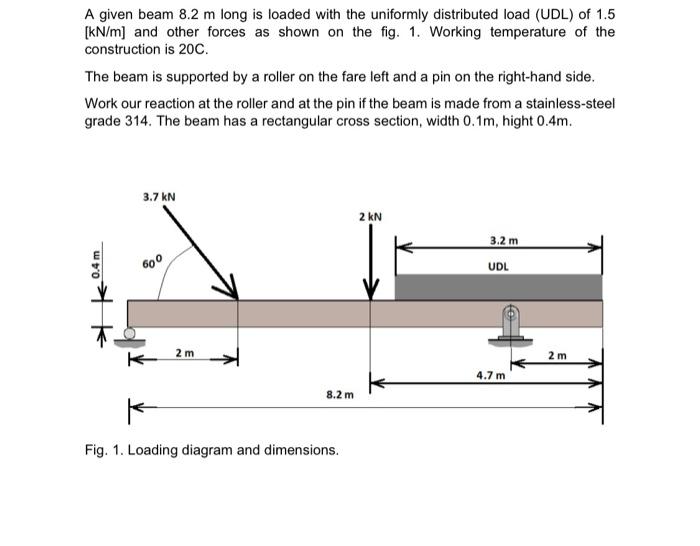

A given beam 8.2 m long is loaded with the uniformly distributed load (UDL) of 1.5 [kN/m] and other forces as shown on the fig. 1. Working temperature of the construction is 20C. The beam is supported by a roller on the fare left and a pin on the right-hand side. Work our reaction at the roller and at the pin if the beam is made from a stainless-steel grade 314. The beam has a rectangular cross section, width 0.1m, hight 0.4m. 3.7 KN 2 kN 3.2 m 0.4m 600 UDL 斗 不, 2 m 2 m 4.7 m 8.2 m Fig. 1. Loading diagram and dimensions.
