CONFIDENTIAL QUESTION 1 (10 MARKS) Figure 1 shows part of a control linkage for an airplane consists of a rigid member C

Post by answerhappygod »

Confidential Question 1 10 Marks Figure 1 Shows Part Of A Control Linkage For An Airplane Consists Of A Rigid Member C 1
Confidential Question 1 10 Marks Figure 1 Shows Part Of A Control Linkage For An Airplane Consists Of A Rigid Member C 1 (24.73 KiB) Viewed 22 times

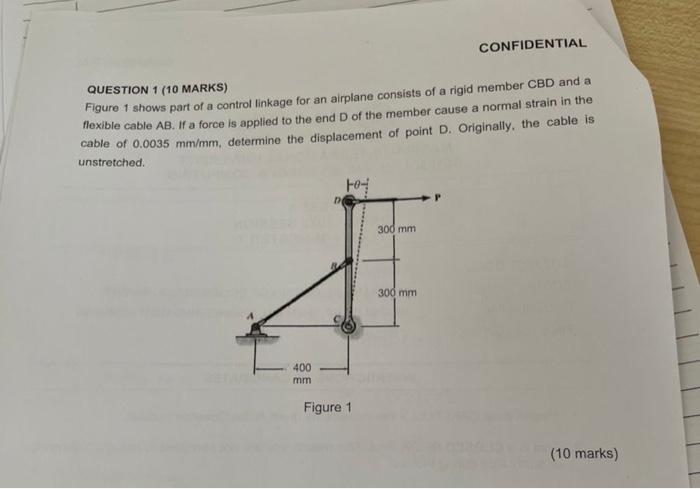

CONFIDENTIAL QUESTION 1 (10 MARKS) Figure 1 shows part of a control linkage for an airplane consists of a rigid member CBD and a flexible cable AB. If a force is applied to the end of the member cause a normal strain in the cable of 0.0035 mm/mm, determine the displacement of point D. Originally, the cable is unstretched. Fo- 300 mm 300 mm 400 mm Figure 1 (10 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
