Question 16 16 Points Save Answer Figure 16 Below Shows Instrumentations Used To Control The Temperature And Flow Rate I 1 (44.24 KiB) Viewed 10 times

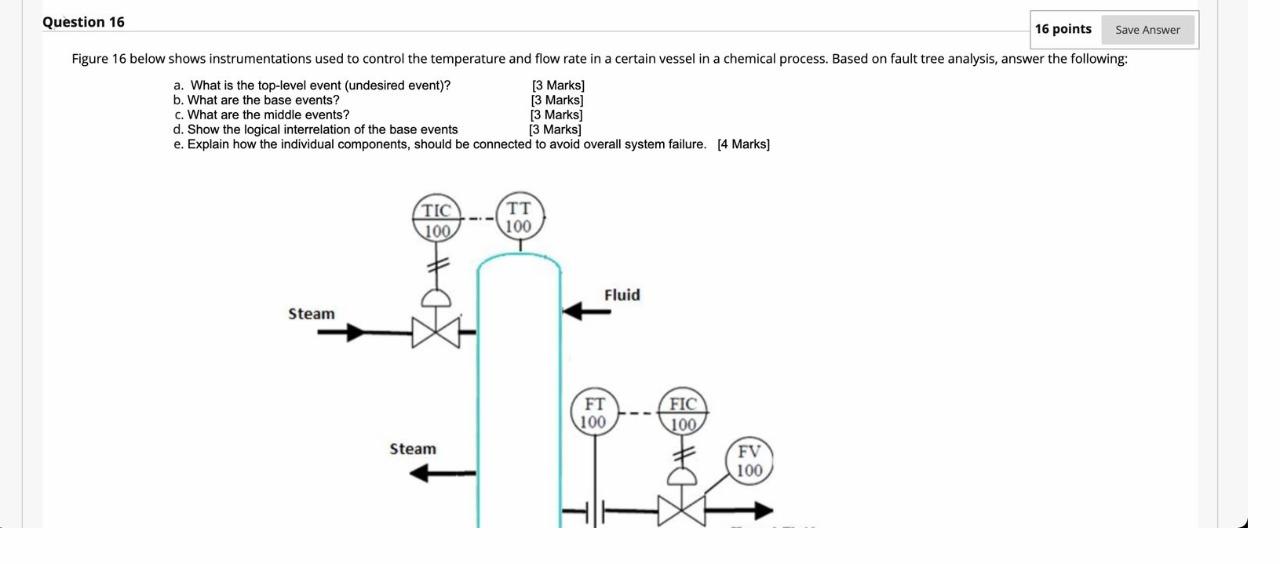

Question 16 16 points Save Answer Figure 16 below shows instrumentations used to control the temperature and flow rate in a certain vessel in a chemical process. Based on fault tree analysis, answer the following: a. What is the top-level event (undesired event)? [3 Marks) b. What are the base events? [3 marks] c. What are the middle events? [3 marks] d. Show the logical interrelation of the base events [3 marks] e. Explain how the individual components, should be connected to avoid overall system failure. [4 Marks] TIC 1100 TT 100 Fluid Steam FIC FT 100 V100 Steam FV 100
d. Show the logical interrelation of the base events [3 Marks] e. Explain how the individual components, should be connected to avoid overall system failure. [4 Marks] TIC 100 TT 100 Fluid Steam FT 100 FIC 100 Steam FV 100 Heated Fluid Manual Valve Condensate Figure 16
