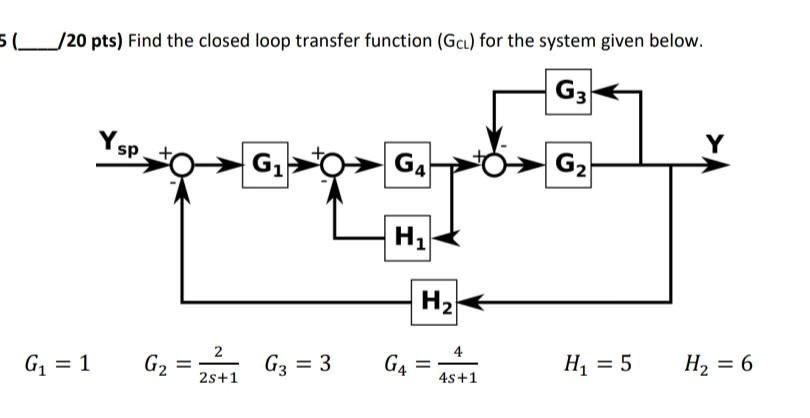

5 L/20 pts) Find the closed loop transfer function (Gal) for the system given below. G3 Y sp G1 G4 G2 Hi H2i 4 G1 = 1 G2

Post by answerhappygod »

5 L 20 Pts Find The Closed Loop Transfer Function Gal For The System Given Below G3 Y Sp G1 G4 G2 Hi H2i 4 G1 1 G2 1
5 L 20 Pts Find The Closed Loop Transfer Function Gal For The System Given Below G3 Y Sp G1 G4 G2 Hi H2i 4 G1 1 G2 1 (25.54 KiB) Viewed 9 times
5 L/20 pts) Find the closed loop transfer function (Gal) for the system given below. G3 Y sp G1 G4 G2 Hi H2i 4 G1 = 1 G2 =2, G3 = 3 2 2s+1 = G4 H = 5 H2 = 6 = 4s +1
