(b) Using the Steam Tables provided determine the following: (i) the enthalpy of steam at a pressure of 40 bar and a dry

[answerhappygod]

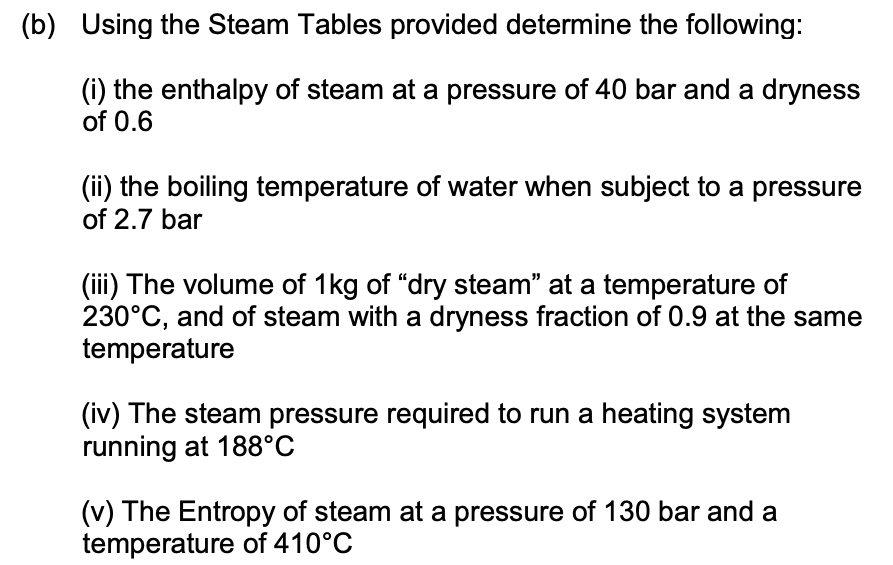

B Using The Steam Tables Provided Determine The Following I The Enthalpy Of Steam At A Pressure Of 40 Bar And A Dry 1 (70.22 KiB) Viewed 12 times

(b) Using the Steam Tables provided determine the following: (i) the enthalpy of steam at a pressure of 40 bar and a dryness of 0.6 (ii) the boiling temperature of water when subject to a pressure of 2.7 bar (iii) The volume of 1kg of "dry steam” at a temperature of 230°C, and of steam with a dryness fraction of 0.9 at the same temperature (iv) The steam pressure required to run a heating system running at 188°C (v) The Entropy of steam at a pressure of 130 bar and a temperature of 410°C
