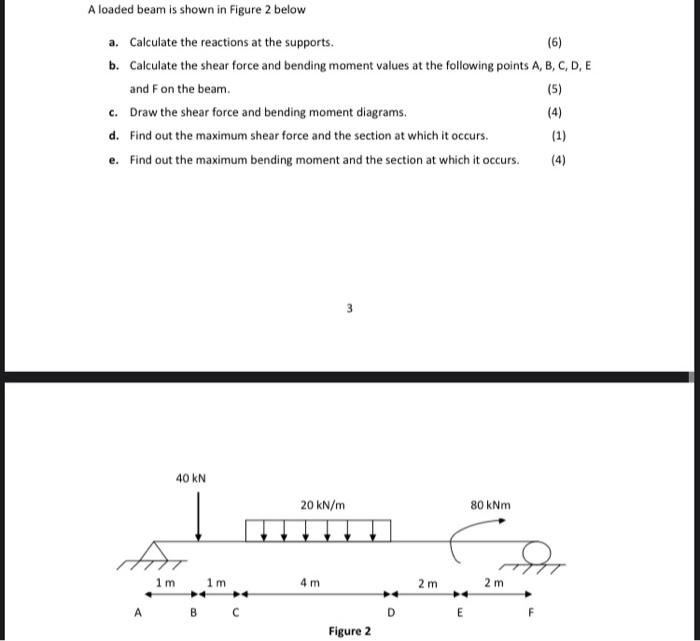

A loaded beam is shown in Figure 2 below a. Calculate the reactions at the supports. (6) b. Calculate the shear force an

[answerhappygod]

A Loaded Beam Is Shown In Figure 2 Below A Calculate The Reactions At The Supports 6 B Calculate The Shear Force An 1 (31.8 KiB) Viewed 17 times

A loaded beam is shown in Figure 2 below a. Calculate the reactions at the supports. (6) b. Calculate the shear force and bending moment values at the following points A, B, C, D, E and Fon the beam. (5) c. Draw the shear force and bending moment diagrams, (4) d. Find out the maximum shear force and the section at which it occurs. (1) e. Find out the maximum bending moment and the section at which it occurs. (4) 40 KN 20 kN/m 80 kNm A 4 m 2 m 2 m 1 m 1 m + A B C E Figure 2
