A hand pump is proposed to be converted to a motorized pump by connecting its lever to a motorized crank-lever system as

Post by answerhappygod »

A Hand Pump Is Proposed To Be Converted To A Motorized Pump By Connecting Its Lever To A Motorized Crank Lever System As 1
A Hand Pump Is Proposed To Be Converted To A Motorized Pump By Connecting Its Lever To A Motorized Crank Lever System As 1 (35.58 KiB) Viewed 21 times

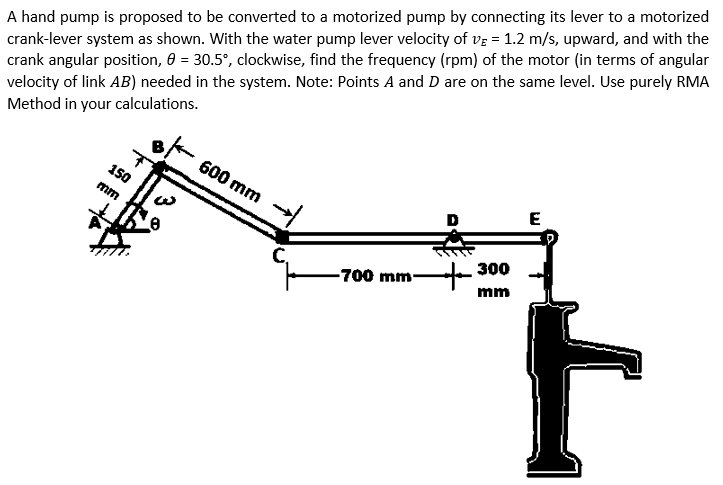

A hand pump is proposed to be converted to a motorized pump by connecting its lever to a motorized crank-lever system as shown. With the water pump lever velocity of vε = 1.2 m/s, upward, and with the crank angular position, 6 = 30.5°, clockwise, find the frequency (rpm) of the motor (in terms of angular velocity of link AB) needed in the system. Note: Points A and D are on the same level. Use purely RMA Method in your calculations. 150 600 mm mm D E -700 mm 300 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
