Find the shear force and bending moment diagrams for beam ABC.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Find the shear force and bending moment diagrams for beam ABC.

Post by answerhappygod »

Find the shear force and bending moment diagrams for beam
ABC.

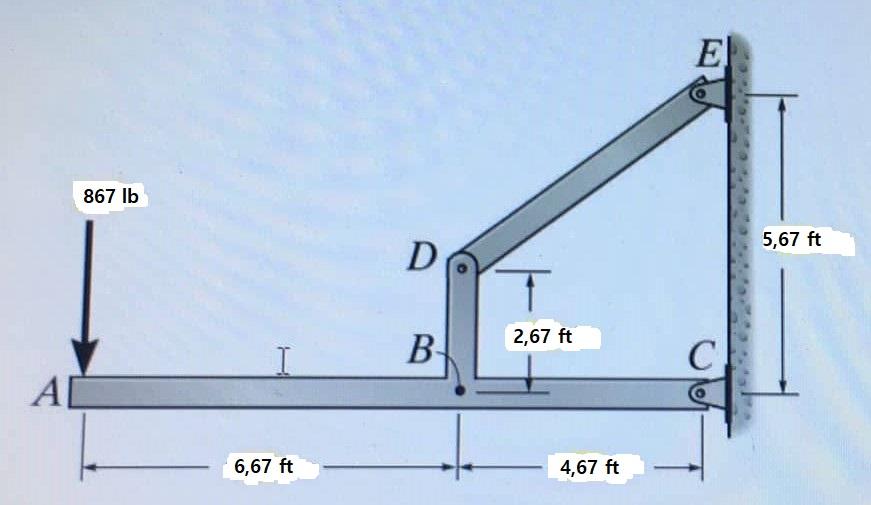

Find The Shear Force And Bending Moment Diagrams For Beam Abc 1
Find The Shear Force And Bending Moment Diagrams For Beam Abc 1 (36.14 KiB) Viewed 22 times
ΕΙ 867 lb 5,67 ft DO T 2,67 ft I B C ΑΙ 6,67 ft 4,67 ft
