Question 5 [20 Points For the Soil profile given below, determine the net allowable bearing capacity of the isolated rec

Post by answerhappygod »

Question 5 20 Points For The Soil Profile Given Below Determine The Net Allowable Bearing Capacity Of The Isolated Rec 1
Question 5 20 Points For The Soil Profile Given Below Determine The Net Allowable Bearing Capacity Of The Isolated Rec 1 (60.28 KiB) Viewed 10 times

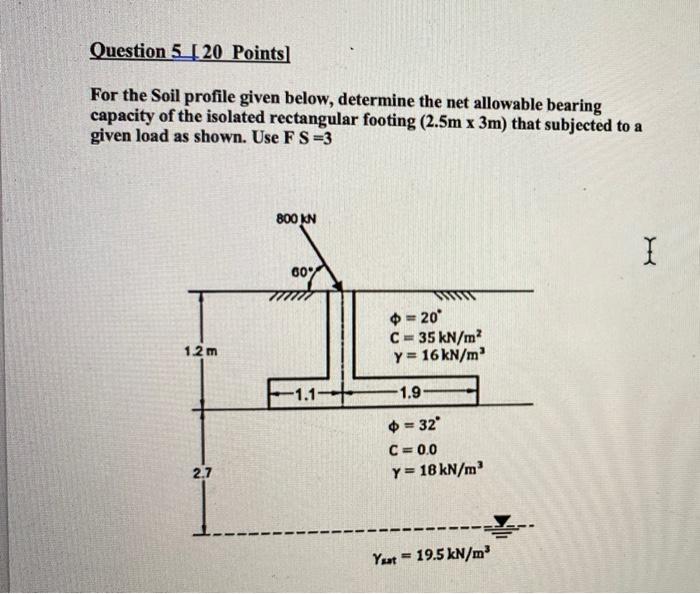

Question 5 [20 Points For the Soil profile given below, determine the net allowable bearing capacity of the isolated rectangular footing (2.5m x 3m) that subjected to a given load as shown. Use F S =3 800 KN I 00% = 20 C= 35 kN/m2 Y= 16 kN/m 1.2 m -1.1-+ 1.9 = 32 C=0.0 Y = 18 kN/m 2.7 Y = 19.5 kN/m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
