The compressed air requirements of a textile factory are met by a large compressor that draws in 0.6 m3/s air at atmosph

[answerhappygod]

The Compressed Air Requirements Of A Textile Factory Are Met By A Large Compressor That Draws In 0 6 M3 S Air At Atmosph 1 (443.97 KiB) Viewed 10 times

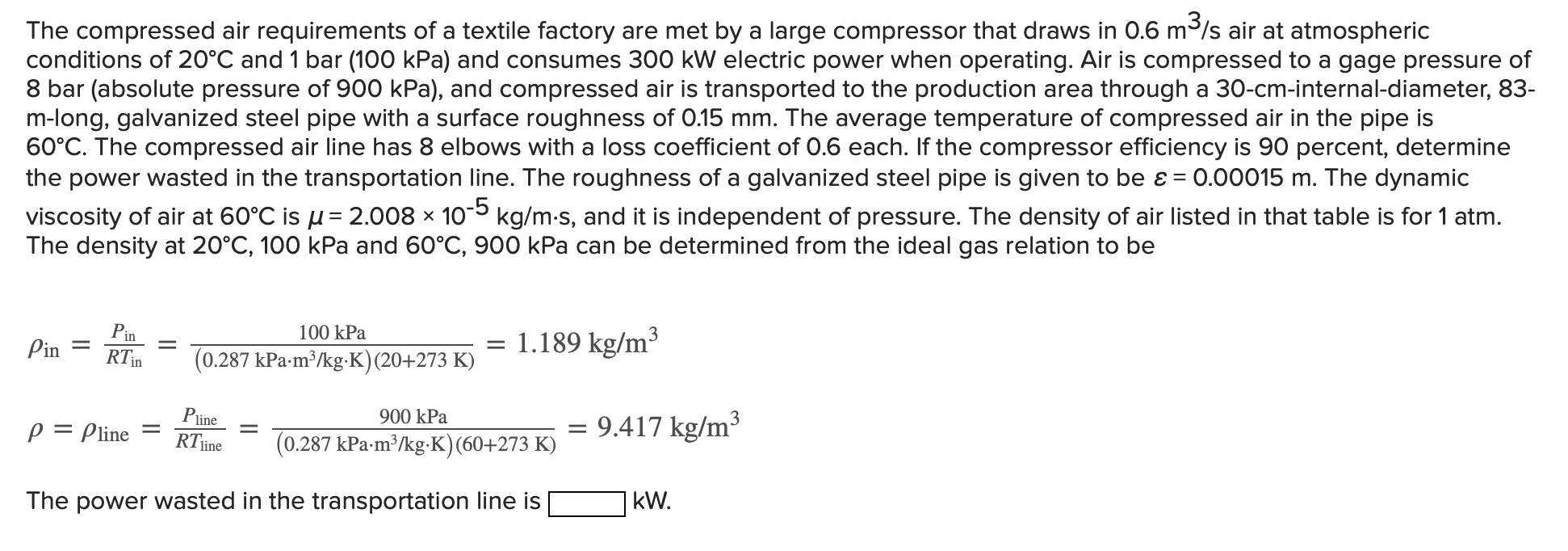

The compressed air requirements of a textile factory are met by a large compressor that draws in 0.6 m3/s air at atmospheric conditions of 20°C and 1 bar (100 kPa) and consumes 300 kW electric power when operating. Air is compressed to a gage pressure of 8 bar (absolute pressure of 900 kPa), and compressed air is transported to the production area through a 30-cm-internal-diameter, 83- m-long, galvanized steel pipe with a surface roughness of 0.15 mm. The average temperature of compressed air in the pipe is 60°C. The compressed air line has 8 elbows with a loss coefficient of 0.6 each. If the compressor efficiency is 90 percent, determine the power wasted in the transportation line. The roughness of a galvanized steel pipe is given to be ε = 0.00015 m. The dynamic viscosity of air at 60°C is u = 2.008 10-5 kg/m-s, and it is independent of pressure. The density of air listed in that table is for 1 atm. The density at 20°C, 100 kPa and 60°C, 900 kPa can be determined from the ideal gas relation to be Х Pin = Pin RTin = 100 kPa (0.287 kPa.m/kg.K)(20+273 K) 1.189 kg/m3 Pline RTline - 3 P = Pline 900 kPa (0.287 kPa.m3/kg.K)(60+273 K) = 9.417 kg/m? The power wasted in the transportation line is kW.
