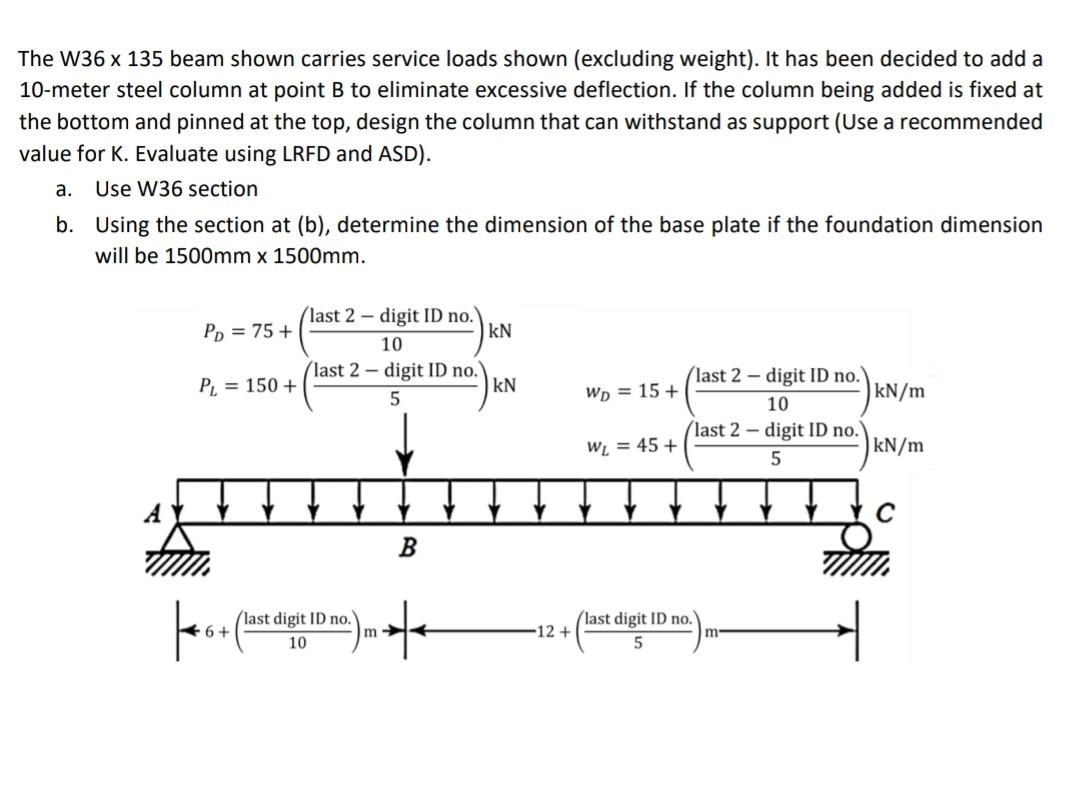

The W36 x 135 beam shown carries service loads shown (excluding weight). It has been decided to add a 10-meter steel column at point B to eliminate excessive deflection. If the column being added is fixed at the bottom and pinned at the top, design the column that can withstand as support (Use a recommended value for K. Evaluate using LRFD and ASD). a. Use W36 section b. Using the section at (b), determine the dimension of the base plate if the foundation dimension will be 1500mm x 1500mm. (last 2 - digit ID no. PD = 75+ KN 10 (last 2 - digit ID no. PL = 150+ kN 5 WD = 15+ last 2 - digit ID no. kN/m 10 (last 2 - digit ID no. kN/m 5 WL = 45+ с B 140 + (wat die last digit ID no. 6+ 10 m + 12 + (last digit ID no. 5 m 어
