The tangent lines of a simple curve have azimuths 300 and bearing N 04 E, respectively. A third tangent line AB intersec
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The tangent lines of a simple curve have azimuths 300 and bearing N 04 E, respectively. A third tangent line AB intersec

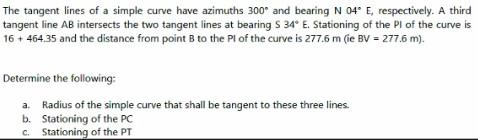

The tangent lines of a simple curve have azimuths 300 and bearing N 04 E, respectively. A third tangent line AB intersects the two tangent lines at bearing S 34* E. Stationing of the Pl of the curve is 16 + 464.35 and the distance from point B to the Pl of the curve is 277.6 m (ie BV = 277.6 m). Determine the following: a. Radius of the simple curve that shall be tangent to these three lines. b. Stationing of the PC C. Stationing of the PT
