A combined footing has columns loads of Q1 = 1200 kN and Q2 = 800 kN. Distances L3 = 6m and L1 = 3m. a. Determine the va

Post by answerhappygod »

A Combined Footing Has Columns Loads Of Q1 1200 Kn And Q2 800 Kn Distances L3 6m And L1 3m A Determine The Va 1
A Combined Footing Has Columns Loads Of Q1 1200 Kn And Q2 800 Kn Distances L3 6m And L1 3m A Determine The Va 1 (51.41 KiB) Viewed 20 times

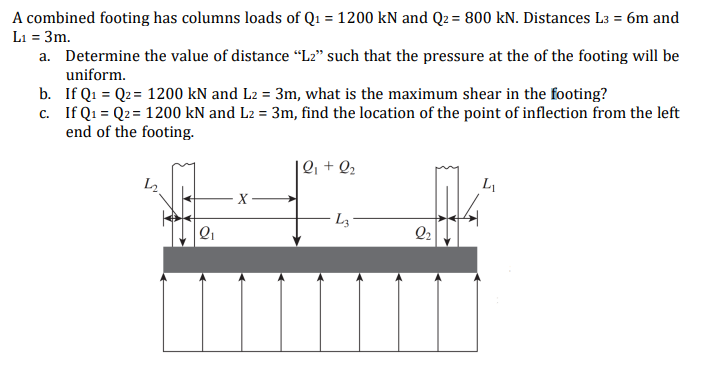

A combined footing has columns loads of Q1 = 1200 kN and Q2 = 800 kN. Distances L3 = 6m and L1 = 3m. a. Determine the value of distance “Lz” such that the pressure at the of the footing will be uniform. b. If Q1 = Q2 = 1200 kN and L2 = 3m, what is the maximum shear in the footing? C. If Q1 = Q2 = 1200 kN and L2 = 3m, find the location of the point of inflection from the left end of the footing. Q+Q2 L X L3 Q Q2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
