Answer in 4 different methods please. Double Integration method, area moment method, conjugate beam method, AND virtual
Answer in 4 different methods please. Double Integration method,
area moment method, conjugate beam method, AND virtual work
method.

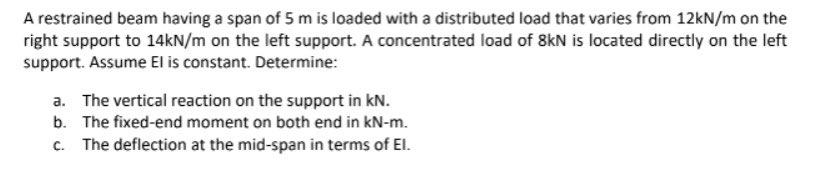

A restrained beam having a span of 5 m is loaded with a distributed load that varies from 12kN/m on the right support to 14kN/m on the left support. A concentrated load of 8kN is located directly on the left support. Assume El is constant. Determine: a. The vertical reaction on the support in kN. b. The fixed-end moment on both end in kN-m. c. The deflection at the mid-span in terms of El.
area moment method, conjugate beam method, AND virtual work
method.
A restrained beam having a span of 5 m is loaded with a distributed load that varies from 12kN/m on the right support to 14kN/m on the left support. A concentrated load of 8kN is located directly on the left support. Assume El is constant. Determine: a. The vertical reaction on the support in kN. b. The fixed-end moment on both end in kN-m. c. The deflection at the mid-span in terms of El.
