For the connected system shown in Figure 2. Block B and C weigh 10lb and 201b, respectively. When Block C was released f

Post by answerhappygod »

For The Connected System Shown In Figure 2 Block B And C Weigh 10lb And 201b Respectively When Block C Was Released F 1
For The Connected System Shown In Figure 2 Block B And C Weigh 10lb And 201b Respectively When Block C Was Released F 1 (15.29 KiB) Viewed 12 times
a. draw free body diagram
b. tension force developed at the ropes in lb
c. acceleration of block c in ft/s2
d. acceleration of block b in ft/s2
e. normal force at block b in lb
f. if block c is hung 15' (reference at the bottom base) from the ground, what is its speed when it hits the ground? answer in ft/s

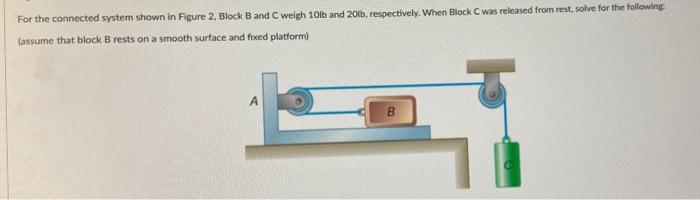

For the connected system shown in Figure 2. Block B and C weigh 10lb and 201b, respectively. When Block C was released from rest, solve for the following {assume that block B rests on a smooth surface and fixed platform) А B
