A cantilever beam is subjected to uniform load as shown. Cross-section of the beam is in the shape of inverted T-section

Post by answerhappygod »

A Cantilever Beam Is Subjected To Uniform Load As Shown Cross Section Of The Beam Is In The Shape Of Inverted T Section 1
A Cantilever Beam Is Subjected To Uniform Load As Shown Cross Section Of The Beam Is In The Shape Of Inverted T Section 1 (25.17 KiB) Viewed 16 times

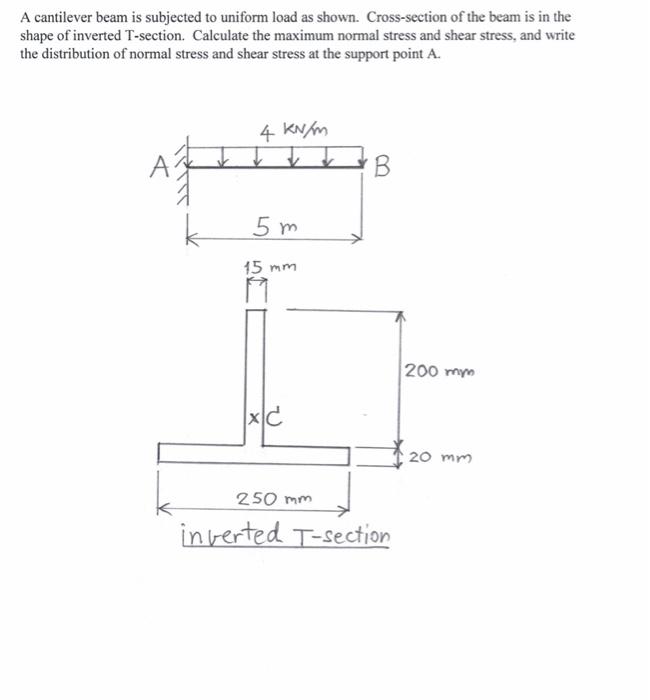

A cantilever beam is subjected to uniform load as shown. Cross-section of the beam is in the shape of inverted T-section. Calculate the maximum normal stress and shear stress, and write the distribution of normal stress and shear stress at the support point A. 4 KN/m AF В B. 5m 15 mm M 200 myn Id 20 mm 250 mm inverted T-section
