1.It is required to determine the approximate values of moment, shear and axial force in each member of frame as shown i

Post by answerhappygod »

1 It Is Required To Determine The Approximate Values Of Moment Shear And Axial Force In Each Member Of Frame As Shown I 1
1 It Is Required To Determine The Approximate Values Of Moment Shear And Axial Force In Each Member Of Frame As Shown I 1 (200.17 KiB) Viewed 13 times

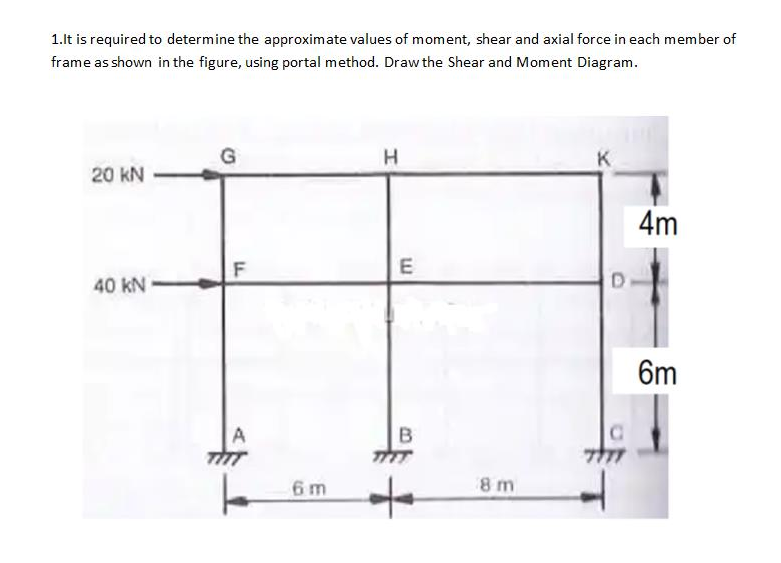

1.It is required to determine the approximate values of moment, shear and axial force in each member of frame as shown in the figure, using portal method. Draw the Shear and Moment Diagram. G H H к 20 KN 4m וד F E 40 KN D Om A B thin 6 m 8 m
