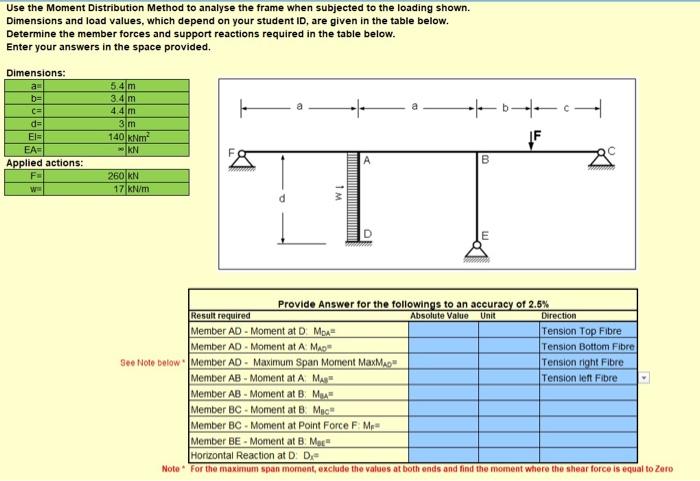

Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below. Determine the member forces and support reactions required in the table below. Enter your answers in the space provided. Dimensions: a b= ca d= ΕΙ EA Applied actions: F W 5.4 m 3.4 m 4.4 m 3 m 140 kNm KN -b-fc- IF B 260 KN 17 kN/m d 1M Provide Answer for the followings to an accuracy of 2.5% Result required Absolute Value Unit Direction Member AD - Moment at DMDA= Tension Top Fibre Member AD - Moment at A: Map Tension Bottom Fibre See Note below Member AD - Maximum Span Moment MaxMap Tension right Fibre Member AB - Moment at A MA Tension left Fibre Member AB - Moment at B: Mga Member BC - Moment at 8. Moc Member BC - Moment at Point Force F. Me Member BE - Moment at B. Met Horizontal Reaction at DD- Note For the maximum span moment, exclude the values at both ends and find the moment where the shear force is equal to Zoro
